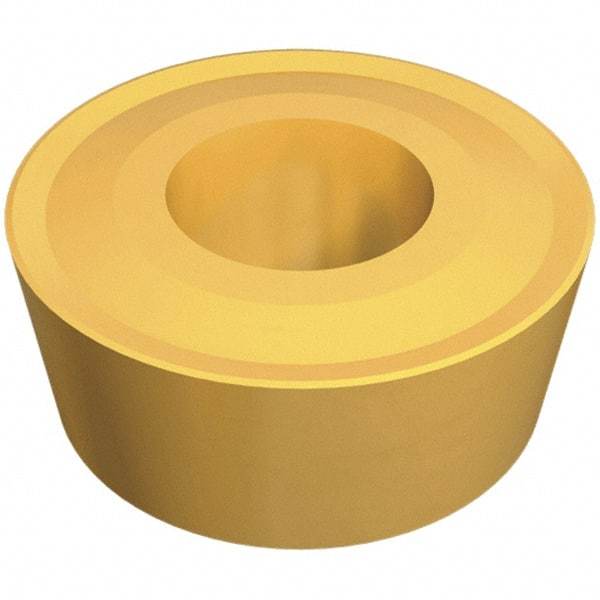

Iscar - RCMT1204M0 MO Grade IC806 Carbide Milling Insert - TiAlN Finish, 0.187" Thick, 0.472" Inscribed Circle
Item #: 30729768
Brand: Iscar
Model #: 5599230
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 1204M0 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC806 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Thickness (Decimal Inch) | 0.1870 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 7.000 |
| Rake | Positive |
| Coating Process | Sumotec PVD |
| Shape | Round |
| Chipbreaker | MO |
| ISO Number | RCMT 1204M0-14 |
