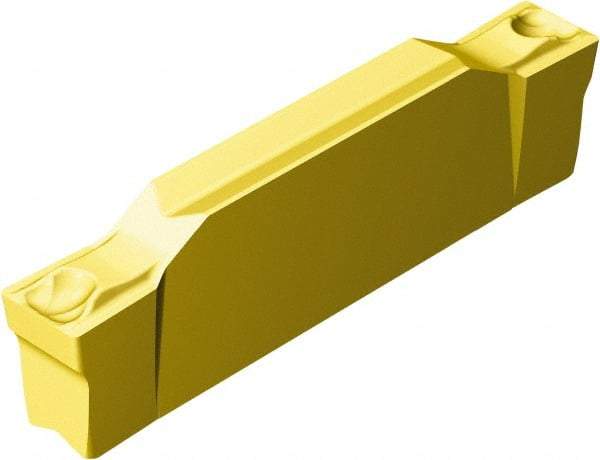

Sandvik Coromant - K2N123 GF Grade 2135, 6mm Cutting Width Carbide Grooving Insert - 24.4mm Max Depth of Cut, Neutral, 0.2mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 30679443
Brand: Sandvik Coromant
Model #: 5736698
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | K2 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 24.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.9606 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | K |
| Chipbreaker | GF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | CVD |
| Series | CoroCut 1-2 |
| ISO Number | N123K206000002GF2135 |
| Manufacturers Catalog Number | 5736698 |
| Insert Thickness (Decimal Inch) | 0.1713 |
| Insert Thickness (mm) | 4.3500 |
