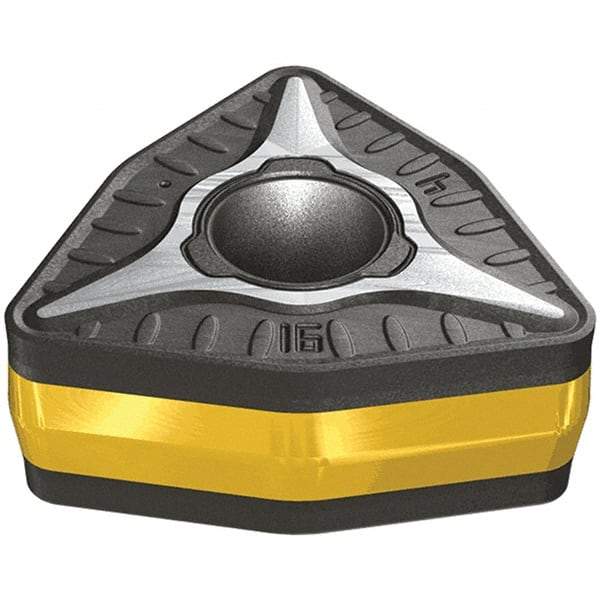

Iscar - WOMG100716 T3P-IQ Grade IC8350 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Trigon, 5/8" Inscr Circle, 5/16" Thick, 1/16" Corner Radius
Item #: 30235006
Brand: Iscar
Model #: 5567113
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WOMG |
| Insert Size | 100716 |
| Material | Carbide |
| Length (mm) | 10.86 |
| Length (Decimal Inch) | 0.4276 |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3126 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | IC8350 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | T3P-IQ |
| Coating Process | CVD |
| Manufacturers Catalog Number | WOMG 100716-T3P-IQ |
| Included Angle | 80 |
| Maximum Depth of Cut (mm) | 2.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1102 |
| Insert Holding Method | Lever Lock |
| MultiUseTool | No |
| Shape | Trigon |
