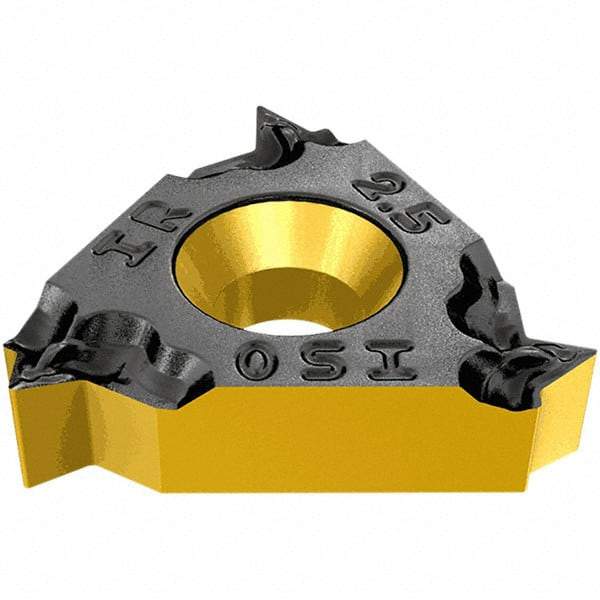

Iscar - 16IRM Internal Right Hand 11-1/2 NPT Laydown Threading Insert - Grade IC508, TiCN/TiN Coated Carbide, 9.52mm Inscribed Circle
Item #: 30017958
Brand: Iscar
Model #: 5921205
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16IRM |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | NPT |
| Manufacturer's Grade | IC508 |
| Internal Threads Per Inch | 11.5 |
| Internal Pitch (mm) | 11.50 |
| Threads Per Inch | 11.5 |
| Pitch (mm) | 11.50 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Coating | TiCN/TiN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.09 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Chipbreaker | M |
