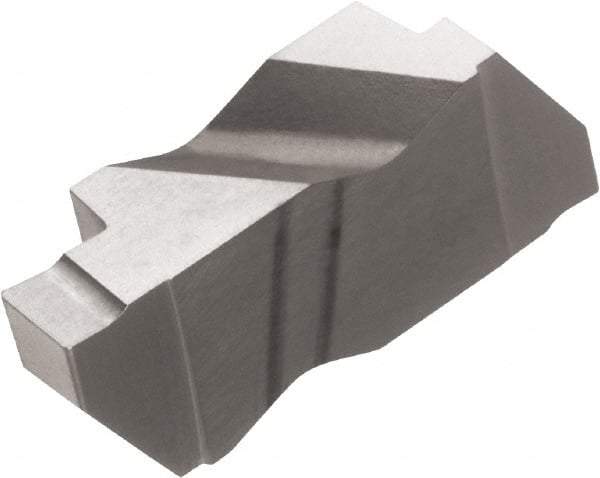

Kyocera - 2047KCGP Grade PR660, 0.047" Cutting Width Carbide Grooving Insert - 0.05" Max Depth of Cut, Right Hand, 0.003" Corner Radius, TiN Finish
Item #: 30016604
Brand: Kyocera
Model #: 8849764
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | KCGP |
| Insert Size | 2047 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0470 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Manufacturer's Grade | PR660 |
| Coating | TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.2190 |
| Relief Angle | 3 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0030 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.5400 |
| Series | KCGP |
| Rake Angle | 5 |
| Manufacturers Catalog Number | KCGP2047R |
| Included Angle | 55 |
| Insert Thickness (Decimal Inch) | 0.1500 |
