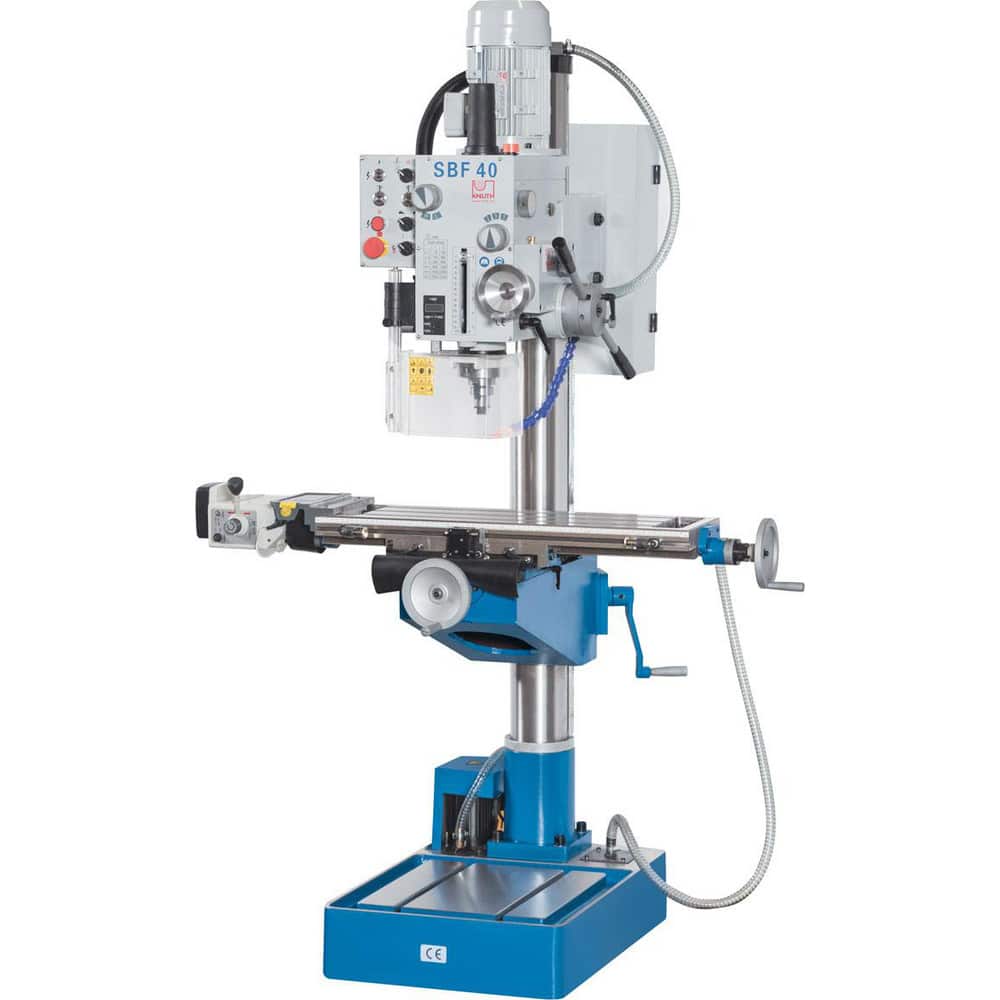

Mill Drill Machines; Spindle Speed Control: Geared Head; Drilling Capacity In Steel: 2; End Milling Capacity: 0.51 in; Phase: 3; Face Milling Capacity: 1 in; Left-hand Head Tilt: 45 ™; Right-hand Head Tilt: 45 ™; Cross Travel: 7; Longitudinal Travel: 19
Item #: 29771235
Brand: Knuth
Model #: 101573
Product Specifications
| Spindle Speed Control | Geared Head |
| Drilling Capacity In Steel | 2 |
| End Milling Capacity | 0.51 in |
| Phase | 3 |
| Face Milling Capacity | 1 in |
| Left-hand Head Tilt | 45 ? |
| Right-hand Head Tilt | 45 ? |
| Cross Travel | 7 |
| Longitudinal Travel | 19.7 |
| Speed Setting | Variable Speed |
| Head Swivel | 45 |
| Maximum Spindle To Column Distance | 11 in |
| Maximum Spindle To Table Distance | 24 |
| Minimum Spindle Speed | 75 |
| Maximum Spindle Speed | 3200 |
| Number Of Spindle Speeds | 12 |
| Number Of T-slots | 4 |
| Horse Power | 1.6 |
| Swing Distance | 22 |
| Table Load Capacity | 220 |
| Table Length | 29.000 |
| Table Width | 8.0000 |
| Frequency | 60 |
| Spindle Taper Size | Morse Taper 4 |
| Spindle Travel Length | 5 |
| Voltage | 230 |
| Overall Height | 73 |
| Overall Length | 33.00 |
| Overall Depth | 30 |
| Includes | Operator Manual; Drill Chuck; Tapping Unit; Coolant System; Table Feed TV 1000; Draw Bar; Tool-Holder Bits |
