Turning Insert: VCGW21.5.5FNA4 CTBH41U, Polycrystalline Cubic Boron Nitride TiN Finish, Neutral, 0.0079″ Corner Radius, 35.0 ° N/A Diamond, Series VCGW
Item #: 26300889
Brand: Ceratizit
Model #: 7142970000

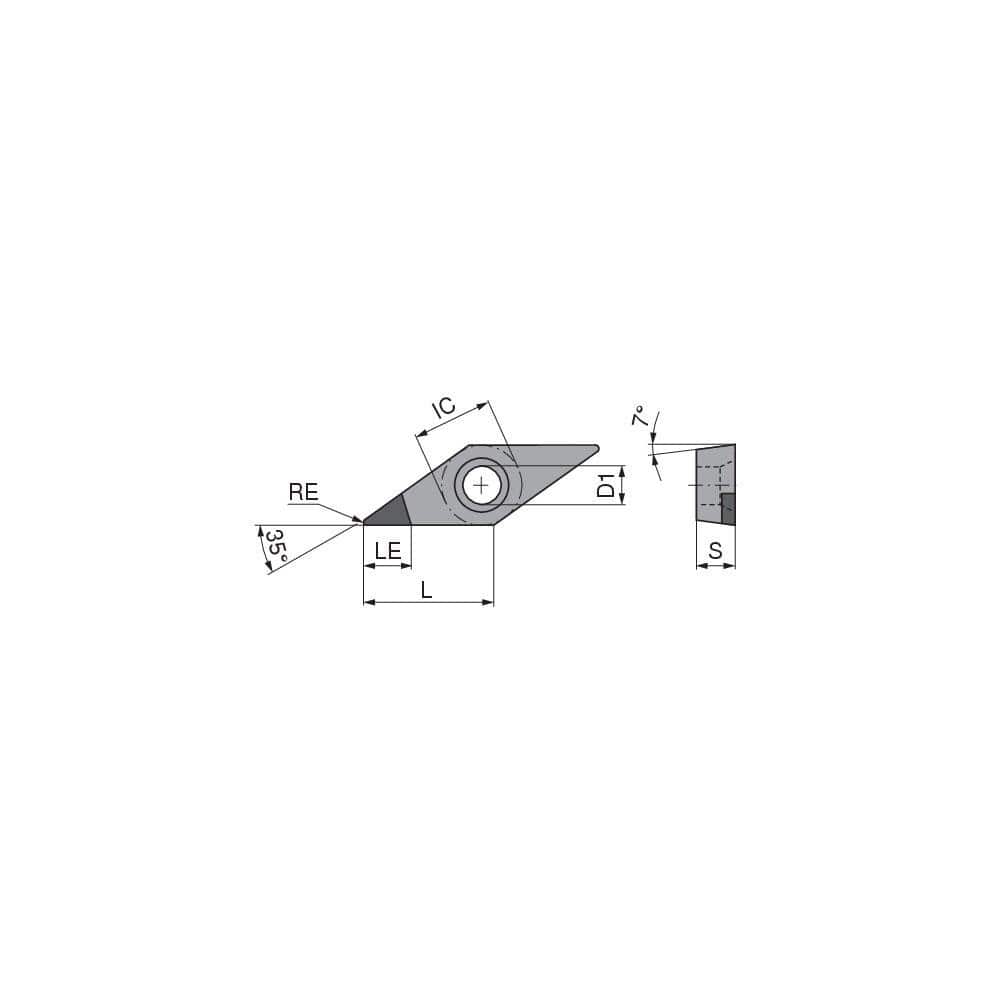

Product Specifications
| Insert Style | VCGW |
| Insert Shape Code | V |
| Insert Size Code | 1.21.5.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBH41U |
| Hole Diameter (Decimal Inch) | 0.0866 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | VCGW |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | VCGW21.5.5FN_A4CTBH41U |
| Iso Code | VCGW 070202FN_A4 CTBH41U |
| Chip Breaker | W |
| Coating/Finish | TiN |
