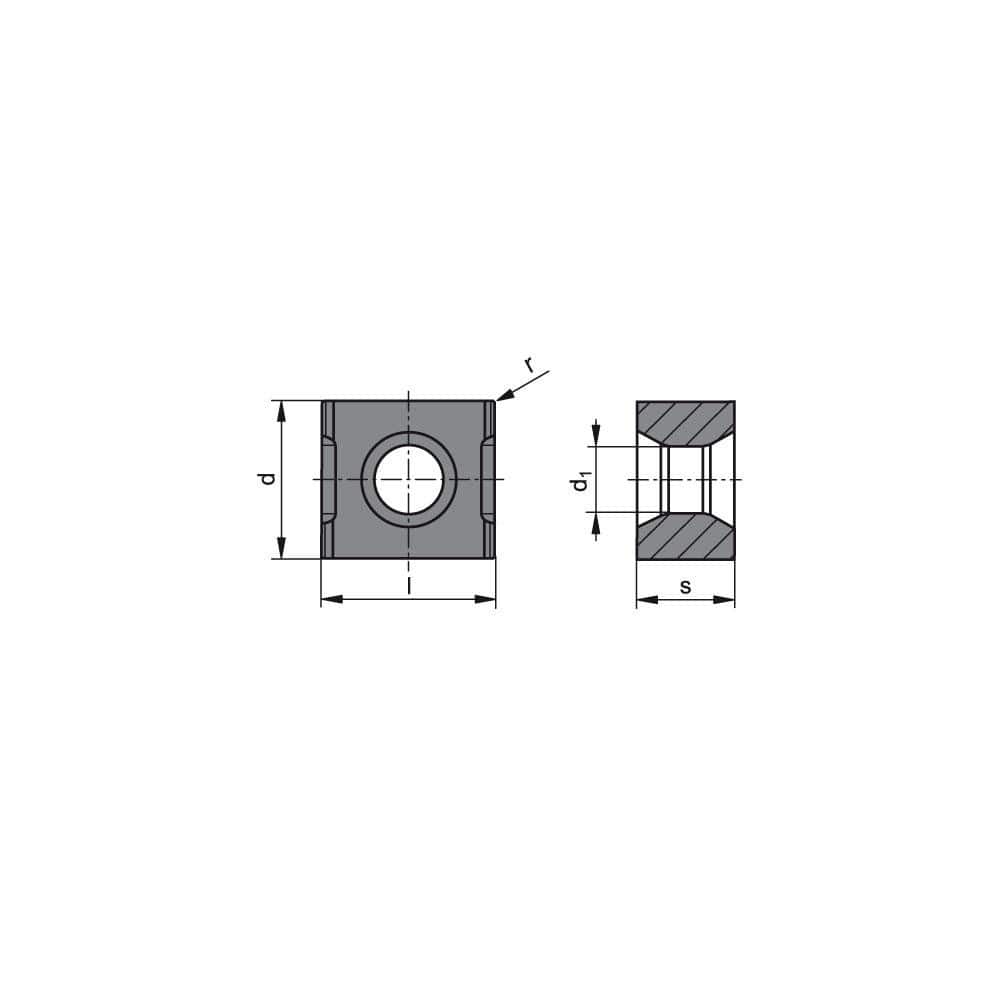

Milling Insert: LNHX 1106PNER CTPK220, CTPK220, Solid Carbide N/A Finish,
Item #: 26221697
Brand: Ceratizit
Model #: 51046620
Product Specifications
| Insert Style | LNHX |
| Insert Size Code | 1106 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPK220 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Insert Hand | Right Hand |
| Relief Angle | 0.00 |
| Series | LNHX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1681 |
| Maximum Depth of Cut (Decimal Inch) | 0.2363 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4331 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | LNHX 1106PNER CTPK220 |
| Chip Breaker | None |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
