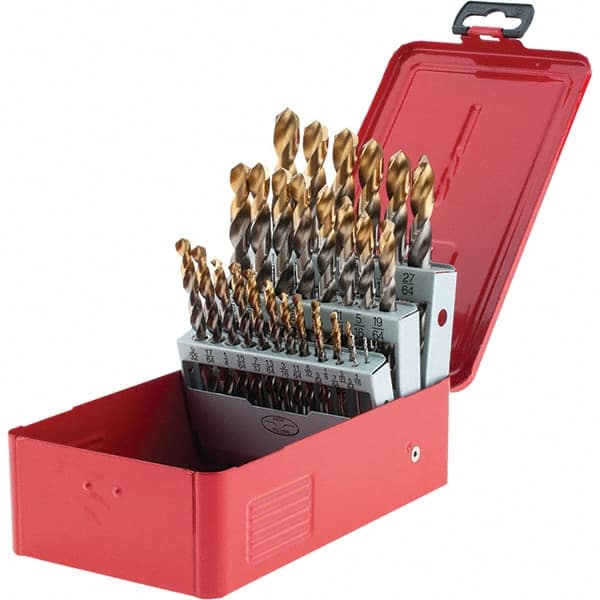

DORMER - 1/16 to 1/2", 118° Point, TiN Finish, High Speed Steel Jobber Length Drill Bit Set
Item #: 80980931
Brand: DORMER
Model #: 0574317
Features and Benefits
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Drill Bit Material | High Speed Steel |
| Drill Bit Set Type | Jobber Length Drill Bits |
| Minimum Drill Bit Size (Decimal Inch) | 0.0625 |
| Minimum Drill Bit Size (Inch) | 1/16 |
| Maximum Drill Bit Size (Decimal Inch) | 0.5000 |
| Maximum Drill Bit Size (Inch) | 1/2 |
| Drill Point Angle | 118 |
| Number of Pieces | 29 |
| Drill Bit Finish/Coating | TiN |
| Drill Bit Size2 (Decimal Inch) | 0.0625; 0.0781; 0.0938; 0.1094; 0.1250; 0.1406; 0.1563; 0.1719; 0.1875; 0.2031; 0.2188; 0.2344; 0.2500; 0.2656; 0.2813; 0.2969; 0.3125; 0.3281; 0.3437; 0.3594; 0.3750; 0.3906; 0.4063; 0.4219; 0.4375; 0.4531; 0.4687; 0.4844; 0.5000 |
| Drill Bit Size (Inch) | 1/16; 5/64; 3/32; 7/64; 1/8; 9/64; 5/32; 11/64; 3/16; 13/64; 7/32; 15/64; 1/4; 17/64; 9/32; 19/64; 5/16; 21/64; 11/32; 23/64; 3/8; 25/64; 13/32; 27/64; 7/16; 29/64; 15/32; 31/64; 1/2 |
| Overall Length (Decimal Inch) | 1.8750; 2.0000; 2.2500; 2.6250; 2.7500; 2.8750; 3.1250; 3.2500; 3.5000; 3.6250; 3.7500; 3.8750; 4.0000; 4.1250; 4.2500; 4.3750; 4.5000; 4.6250; 4.7500; 4.8750; 5.0000; 5.1250; 5.2500; 5.3750; 5.5000; 5.6250; 5.7500; 5.8750; 6.0000 |
| Overall Length (Inch) | 1-7/8; 2; 2-1/4; 2-5/8; 2-3/4; 2-7/8; 3-1/8; 3-1/4; 3-1/2; 3-5/8; 3-3/4; 3-7/8; 4; 4-1/8; 4-1/4; 4-3/8; 4-1/2; 4-5/8; 4-3/4; 4-7/8; 5; 5-1/8; 5-1/4; 5-3/8; 5-1/2; 5-5/8; 5-3/4; 5-7/8; 6 |
| Point Type | Split Point |
| Set Includes | (29) Jobber Length Drills |
| PSC Code | 5133 |
| Through Coolant | No |
