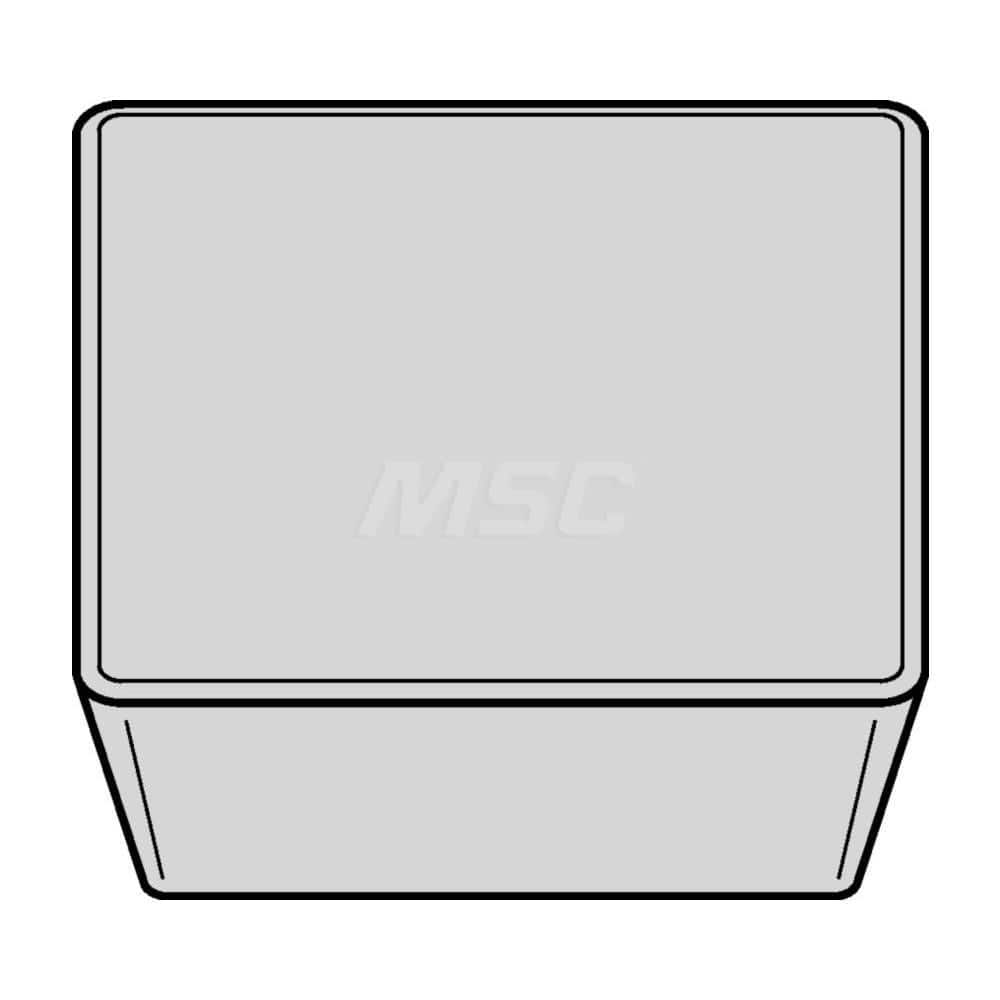

Milling Insert: SPGN150412, KCK20B, Solid Carbide N/A Finish, 0.6250″ OAW
Item #: 20734364
Brand: Kennametal
Model #: 6969266
Product Specifications
| Insert Style | SPG |
| Insert Material | Solid Carbide |
| Width (Inch) | 5/8 |
| Manufacturer Grade | KCK20B |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Insert Hand | Neutral |
| Series | SPGN |
| Hole Diameter (Decimal Inch) | 0.6250 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SPG533 |
| Iso Code | SPGN150412 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Width (Mm - 2 Decimals) | 15.87 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
