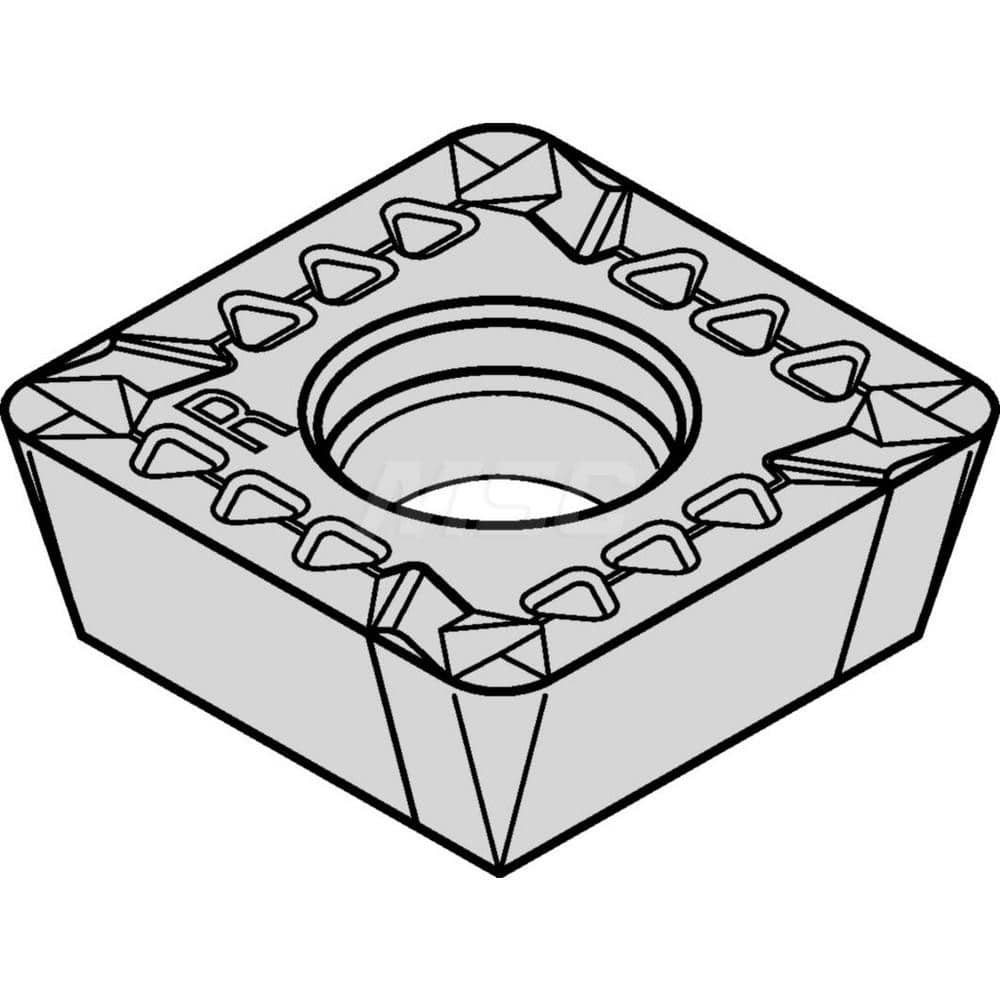

Milling Insert: SDET120416SNGB2, KCK20B, Solid Carbide N/A Finish, 0.5000″ OAW
Item #: 20734208
Brand: Kennametal
Model #: 6970362
Product Specifications
| Insert Style | SDET |
| Insert Material | Solid Carbide |
| Width (Inch) | 1/2 |
| Manufacturer Grade | KCK20B |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Corner Radius (Inch) | 1/16 |
| Insert Hand | Neutral |
| Series | KSSM |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SDET434SNGB2 |
| Iso Code | SDET120416SNGB2 |
| Chip Breaker | GB2 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (Mm - 2 Decimals) | 12.70 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
