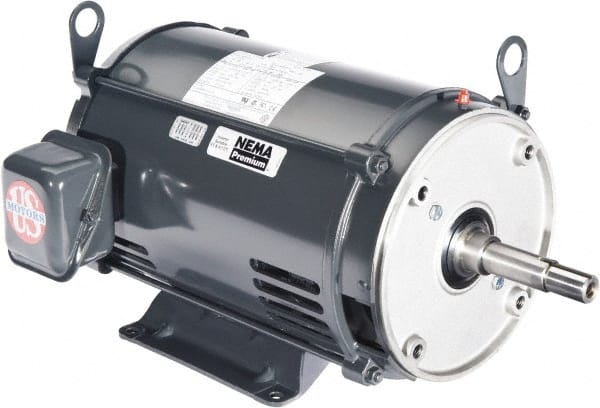

US Motors - 5 hp, ODP Enclosure, No Thermal Protection, 1,755 RPM, 208-230/460 Volt, 60 Hz, Three Phase Energy Efficient Motor
Item #: 53653127
Brand: US Motors
Model #: DJ5E2DM
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | ODP |
| Horsepower | 5 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1755 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 184 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Special Application |
| Full Load Amperage | 14-12.7/6.4 |
| Insulation Class | F |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 17.4400 |
| Full Load Efficiency Rating | 87.5 |
| Service Factor Rating | 1.15 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
