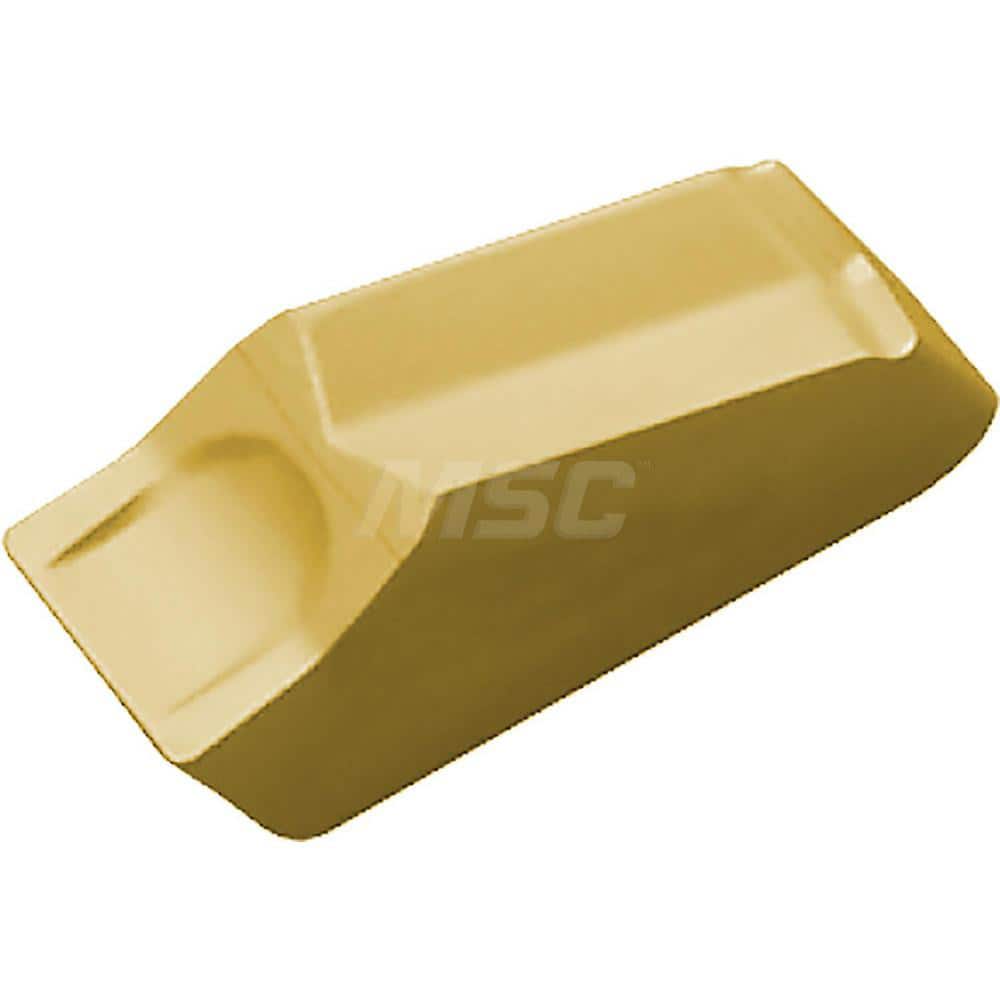

Grooving Insert: FTK5 CR9025, Solid Carbide TiCN & TiN Finish, Neutral, 5 mm Cutting Width, 38 mm Max Depth, Series KFTB
Item #: 18312207
Brand: Kyocera
Model #: TKW10510
Product Specifications
| Insert Style | FTK |
| Insert Size | 5 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CR9025 |
| Cutting Width (mm) | 5.00 |
| Maximum Depth of Cut (mm) | 38.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 5.00 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.25 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Face Grooving |
| Series | KFTB |
| Coating Process | CVD |
| Iso Code | FTK5 |
| Manufacturers Catalog Number | FTK5CR9025 |
| Minimum Groove Width (mm) | -0.05 |
| Maximum Groove Width (mm) | 0.05 |
| Full Radius | No |
| Overall Width | 5.00 |
| Coating/Finish | TiCN; TiN |
| Number Of Cutting Edges | 1 |
