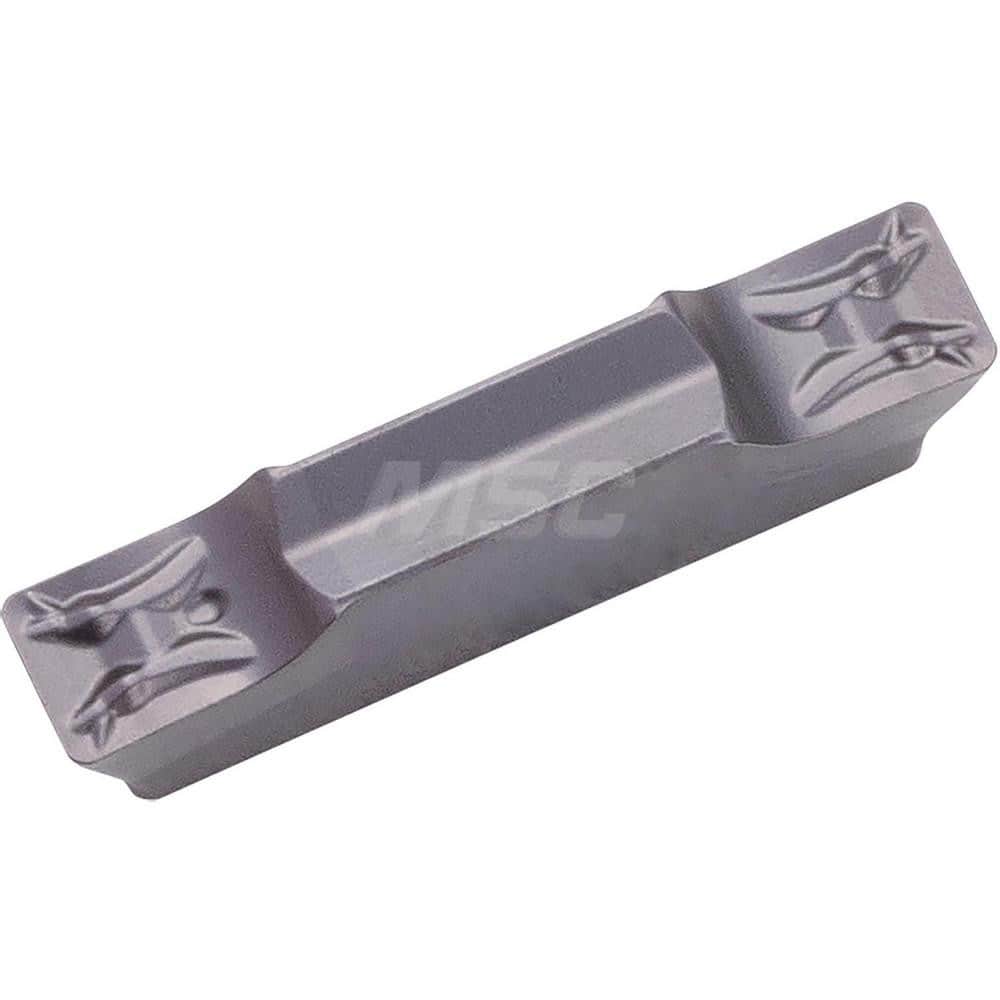

Grooving Insert: GDM2013 PR1215, Solid Carbide Megacoat, Neutral, 2 mm Cutting Width, 7 mm Max Depth, Series KGD
Item #: 18293415
Brand: Kyocera
Model #: TKH10941
Product Specifications
| Insert Style | GDM |
| Insert Size | 2013 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1215 |
| Cutting Width (mm) | 2.00 |
| Maximum Depth of Cut (mm) | 7.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.20 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Internal Grooving |
| Series | KGD |
| Coating Process | PVD |
| Iso Code | GDM2013N-020GMI |
| Manufacturers Catalog Number | GDM2013N020GMIPR1215 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Full Radius | No |
| Overall Width | 2.00 |
| Coating/Finish | Megacoat |
| Number Of Cutting Edges | 2 |
