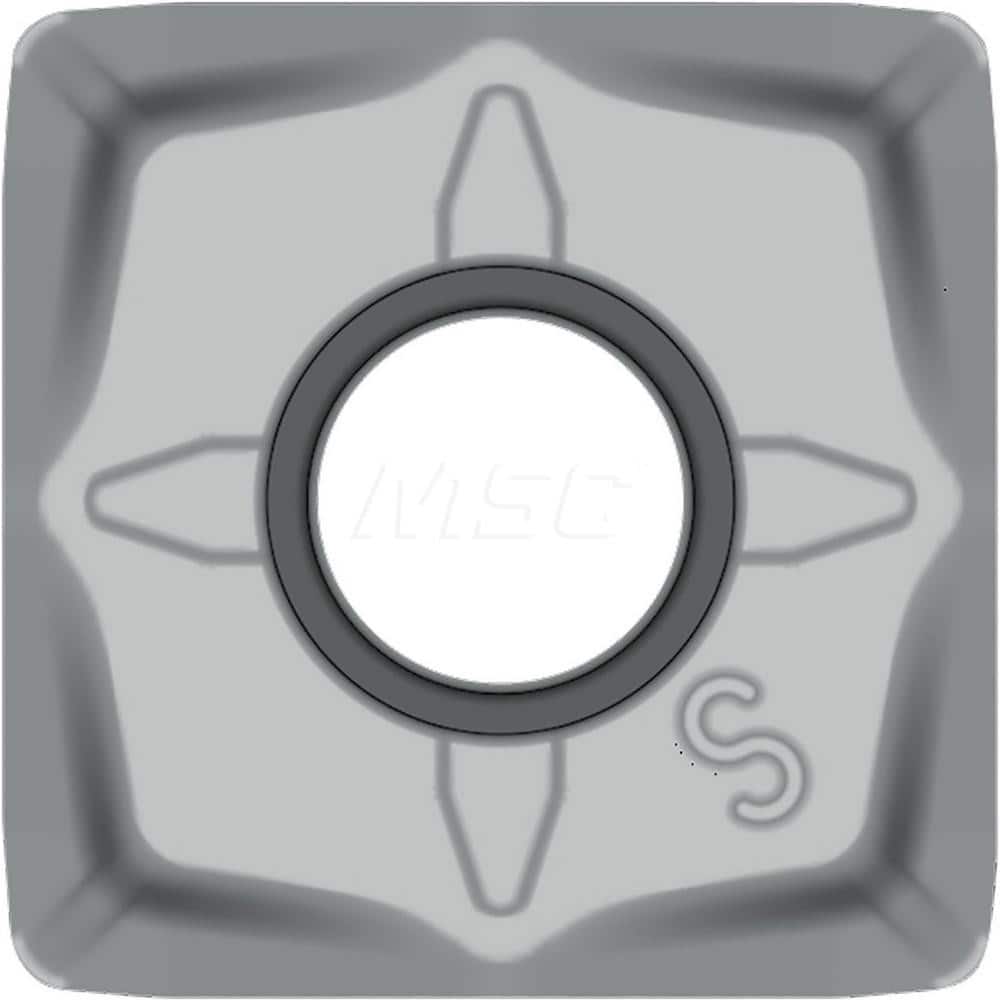

Kyocera SNMU 130508ENGM TN620M Grade Uncoated Cermet, 90 Degree Square, Negative Rake Angle, Neutral Milling insert for Finishing in (P) Free-Cutting Steel
Item #: 18257964
Brand: Kyocera
Model #: TST05400
Product Specifications
| Insert Style | SNMU |
| Insert Size | 130508 |
| Insert Material | Cermet |
| Manufacturer Grade | TN620M |
| Inscribed Circle (mm) | 13.00 |
| Corner Radius (mm) | 0.80 |
| Insert Hand | Neutral |
| Coating Process | Uncoated |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.70 |
| Maximum Depth of Cut (mm) | 13.00 |
| Rake | Negative |
| Ansi Code | SNMU130508ENGMTN620M |
| Iso Code | SNMU130508EN-GM |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SNMU130508ENGMTN620M |
| Cutter Series Compatibility | MFSN |
| Chip Breaker | GM |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Screw |
| Thickness (mm) | 5.51 |
| Coating/Finish | TiCN |
| Length | 13.00 |
| Width (Mm - 2 Decimals) | 13.00 |
