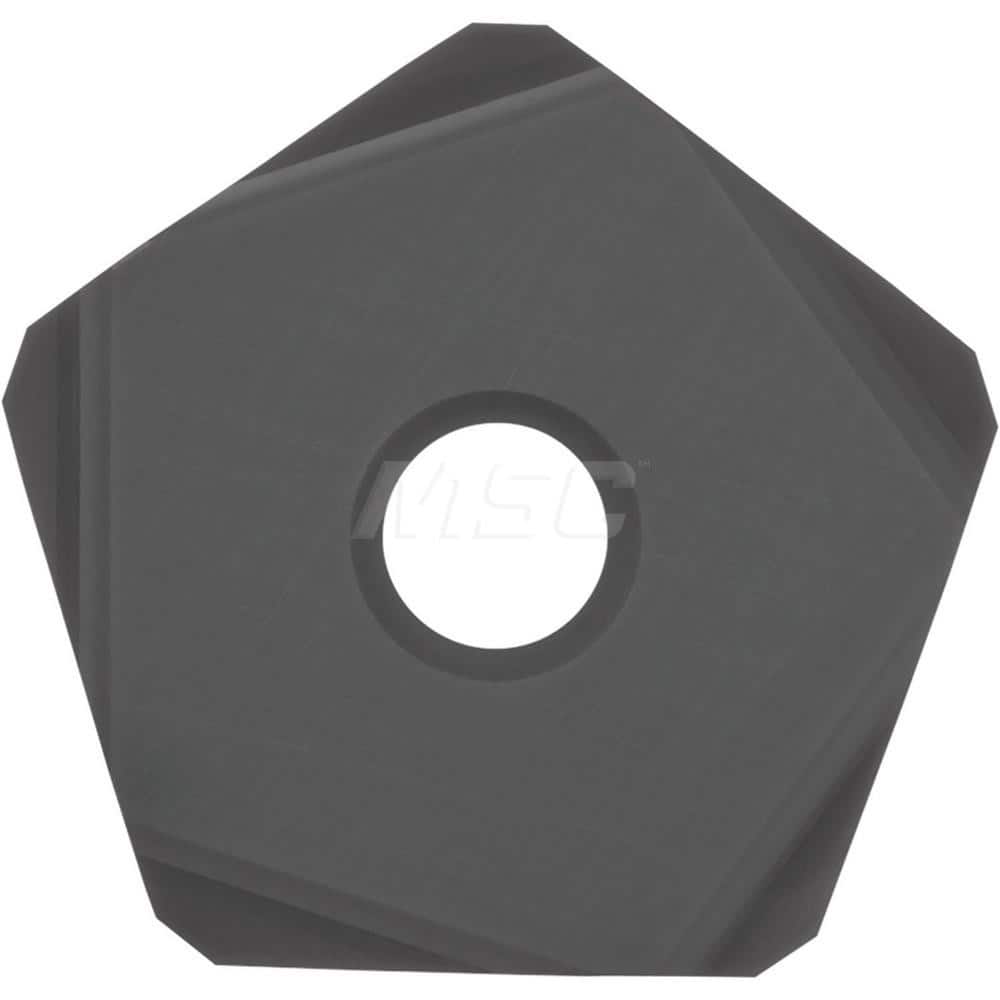

Kyocera PNEG 1106XNTRT00515 KS6050 Grade Ceramic, Pentagon, Negative Rake Angle, Right-Hand Milling Insert for Roughing in (K) Gray Cast Iron and (K) Nodular Cast Iron
Item #: 18254680
Brand: Kyocera
Model #: TCX05300
Product Specifications
| Insert Style | PNEG |
| Insert Size | 1106 |
| Insert Material | Ceramic |
| Manufacturer Grade | KS6050 |
| Inscribed Circle (mm) | 17.07 |
| Insert Hand | Right Hand |
| Coating Process | Uncoated |
| Maximum Depth of Cut (mm) | 11.00 |
| Rake | Negative |
| Ansi Code | PNEG1106XNTRT00515KS6050 |
| Iso Code | PNEG1106XNTR-T00515 |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | PNEG1106XNTRT00515KS6050 |
| Cutter Series Compatibility | MFK |
| Cutting Direction | Right Hand |
| Shape | Pentagon |
| Insert Holding Method | Screw |
| Thickness (mm) | 6.50 |
| Coating/Finish | Uncoated |
| Length | 11.00 |
| Width (Mm - 2 Decimals) | 17.07 |
