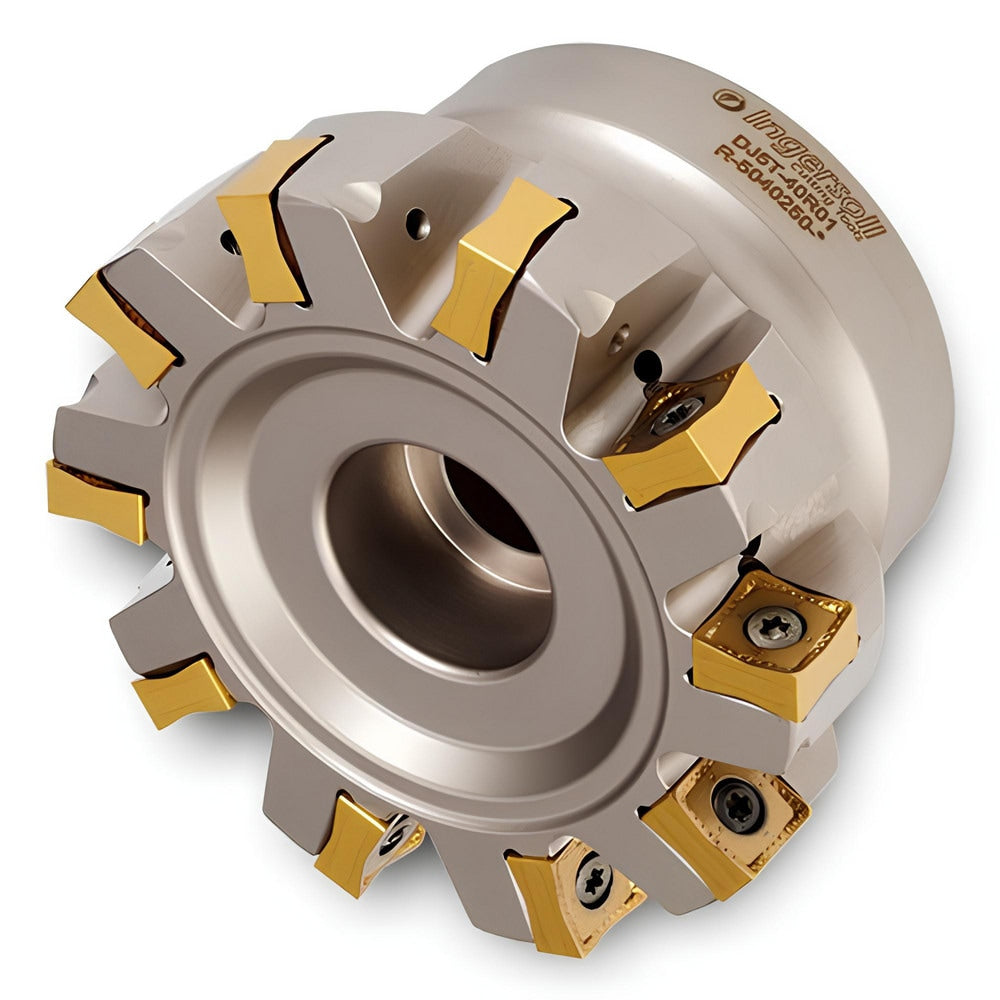

Brand: Ingersoll Cutting Tools / Part #: 3029305
Item #: 96716774
Brand: Ingersoll Cutting Tools
Model #: 3029305
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 8.0000 |
| Minimum Cutting Diameter (Inch) | 8 |
| Maximum Cutting Diameter (Inch) | 8-1/64 |
| Maximum Cutting Diameter (Decimal Inch) | 8.0160 |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Lead Angle | 90.000 |
| Compatible Insert Size Code | 1306 |
| Cutter Style | DJ6T |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | DJ6T |
| Keyway Width (Decimal Inch) | 1.0000 |
| Keyway Width (Inch) | 1 |
| Overall Height (Inch) | 2-3/8 |
| Overall Height (Decimal Inch) | 2.3750 |
| Pitch Type | Normal |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | SNGU1306 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | DJ6T-80R01 |
| Number Of Cutter Inserts | 14 |
| Coolant Through | No |
| Number Of Flutes | 14 |
