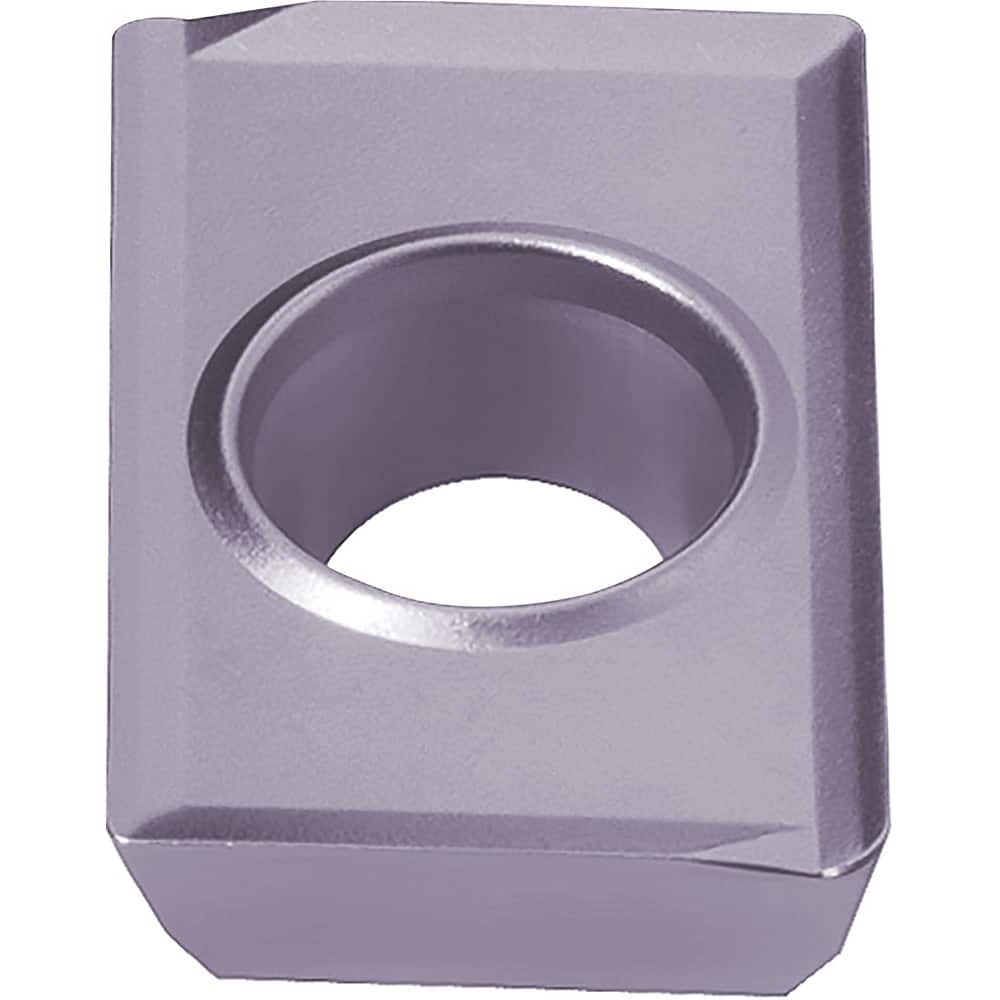

PARALLEL POS RAKE RH Carbide Milling Insert Megacoat Nano Finish, 1/8″ Thick
Item #: 16390718
Brand: Kyocera
Model #: 8864029
Product Specifications
| Insert Style | NDMM |
| Insert Size Code | 322 |
| Insert Size | 322 |
| Insert Material | Solid Carbide |
| Width (Inch) | 3/8 |
| Manufacturer Grade | PR1535 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | CEM; DMC |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Stainless Steel; Titanium Alloy |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Superalloy; Stainless Steel |
| Secondary Workpiece Material Code | S; M |
| Ansi Code | NDMM322ERSPPR1535 |
| Iso Code | NDMM322ERSP |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | NDMM322ERSPPR1535 |
| Chip Breaker | ER-SP |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Thickness (mm) | 3.18 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Width (Mm - 2 Decimals) | 9.53 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
 | |
| MSC Part # | 16390718 |
| Mfr Part # | 8864029 |
| Country of OriginCountry of Origin is subject to change | VARIOUS |
