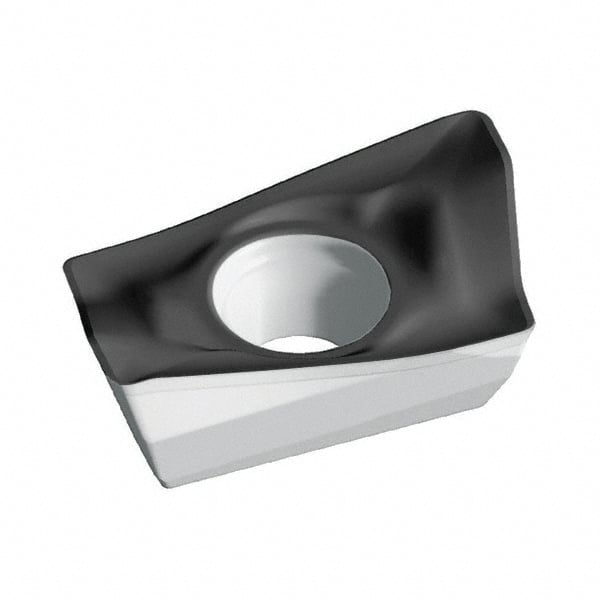

ADMT120416R-F56 WSM45X Milling Insert 13.6mm Long x 4.76mm Thick x 8.4mm Wide
Item #: 16280505
Brand: Walter
Model #: 8112745
Product Specifications
| Insert Style | ADMT |
| Insert Size Code | 12 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM45X |
| Inscribed Circle (Decimal Inch) | 0.3310 |
| Inscribed Circle (mm) | 8.40 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | ADMT |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Maximum Depth of Cut (Decimal Inch) | 0.5350 |
| Maximum Depth of Cut (mm) | 13.60 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (mm) | 13.80 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Super-Alloys & Titanium; Stainless Steel; Non-ISO |
| Primary Workpiece Material Code | S; M |
| Iso Code | ADMT120416R-F56 WSM45X |
| Standards | ISO |
| Manufacturers Catalog Number | ADMT120416R-F56 WSM45X |
| Chip Breaker | G55 |
| Thickness (mm) | 4.76 |
| Coating/Finish | Coated |
| Length | 13.60 |
| Width (Decimal Inch - 4 Decimals) | 0.3310 |
| Width (Mm - 2 Decimals) | 8.40 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
| Length (Decimal Inch - 4 Decimals) | 0.5350 |
 | |
| MSC Part # | 16280505 |
| Mfr Part # | 8112745 |
| Country of OriginCountry of Origin is subject to change | Germany |
