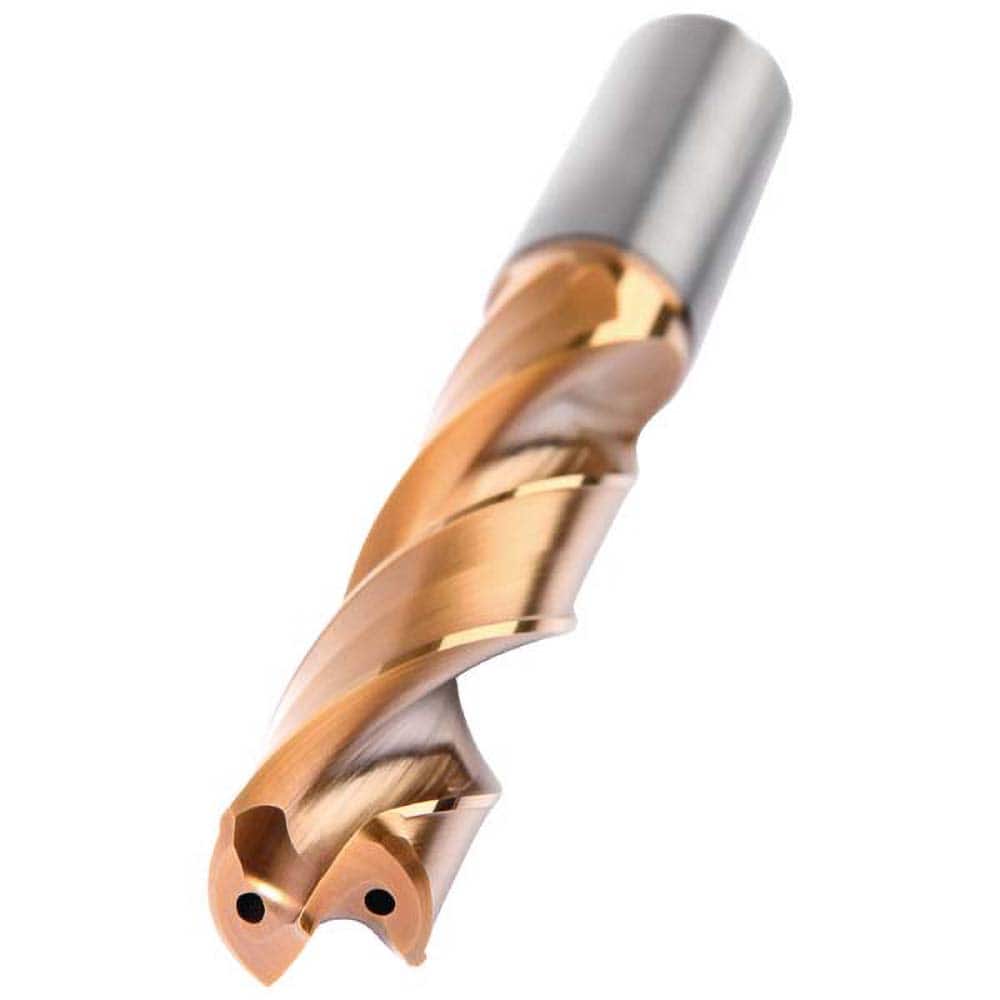

Jobber Length Drill Bit: 0.368″ Dia, 143 °, Solid Carbide AlTiN Finish, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank
Item #: 15664162
Brand: Kennametal
Model #: 6783509
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3680 |
| Drill Bit Size (Letter) | U |
| Drill Bit Size (mm) | 9.35 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlTiN |
| Drill Point Angle (Degrees) | 143 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 103.00 |
| Flute Length (mm) | 60.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 3/8 |
| Maximum Drilling Depth (mm) | 48.70 |
| Shank Length (Decimal Inch) | 1.5945 |
| Drill Point Length (mm) | 2.74 |
| Drill Bit Grade | KCK10A |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
| Drill Bit Size Range (mm) | 9.00 - 10.00 |
