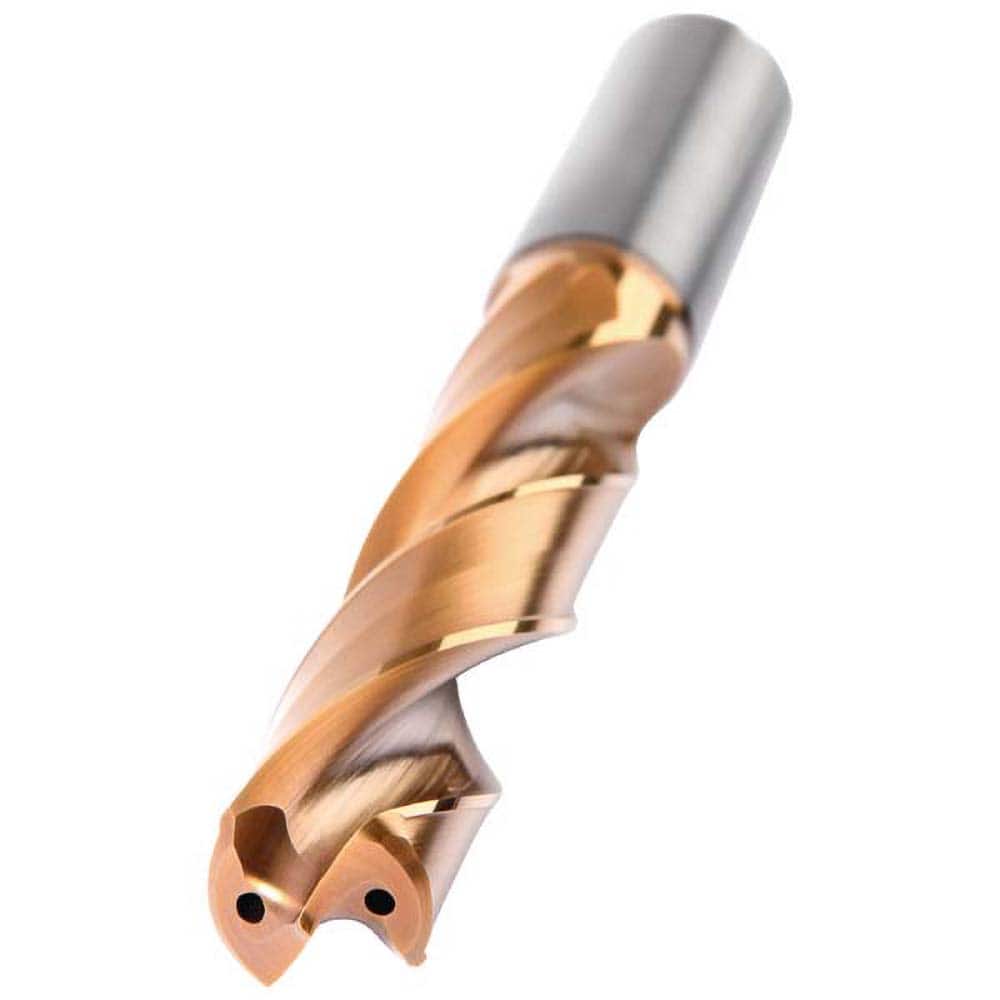

Taper Length Drill Bit: 0.1875″ Dia, 143 ° AlTiN Finish, 1.77″ Flute Length, 3.33″ OAL, RH Cut, Helical Flute, Straight Shank, Series K256
Item #: 15660525
Brand: Kennametal
Model #: 6782607
Product Specifications
| Drill Bit Size (Inch) | 3/16 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Flute Length (Inch) | 1-49/64 |
| Shank Type | Straight |
| Flute Type | Helical |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 143 |
| Overall Length (Inch) | 3.3300 |
| Shank Diameter (Inch) | 3/16 |
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Flute Length (Decimal Inch) | 1.7700 |
| Flute Length x Diamter Ratio | 8xD |
| Overall Length (Decimal Inch) | 3-21/64 |
| Cutting Direction | Right Hand |
| Series | K256 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 1.5000 |
| Shank Length (Decimal Inch) | 1.4375 |
| Drill Point Length (Decimal Inch) | 0.0551 |
| Drill Bit Grade | KCK10A |
| Material Application3 | Cast Iron |
