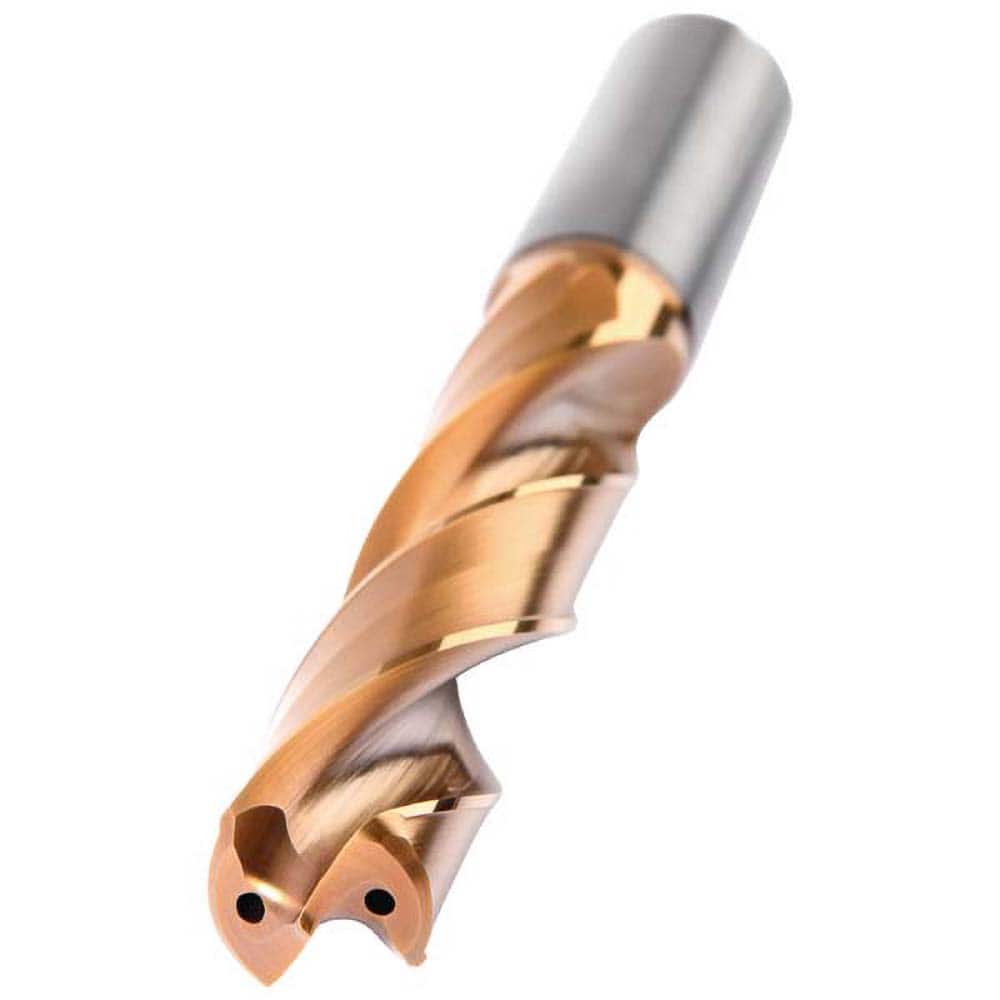

Taper Length Drill Bit: 0.1929″ Dia, 143 ° AlTiN Finish, RH Cut, Helical Flute, Straight Shank, Series B256
Item #: 15660467
Brand: Kennametal
Model #: 6783375
Product Specifications
| Drill Bit Size (mm) | 4.90 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Flute Length (mm) | 56.00 |
| Shank Type | Straight |
| Flute Type | Helical |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 143 |
| Overall Length (mm) | 94.00 |
| Shank Diameter (mm) | 6.00 |
| Drill Bit Size (Decimal Inch) | 0.1929 |
| Flute Length x Diamter Ratio | 8xD |
| Cutting Direction | Right Hand |
| Series | B256 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 48.00 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 1.44 |
| Drill Bit Grade | KCK10A |
| Material Application3 | Cast Iron |
