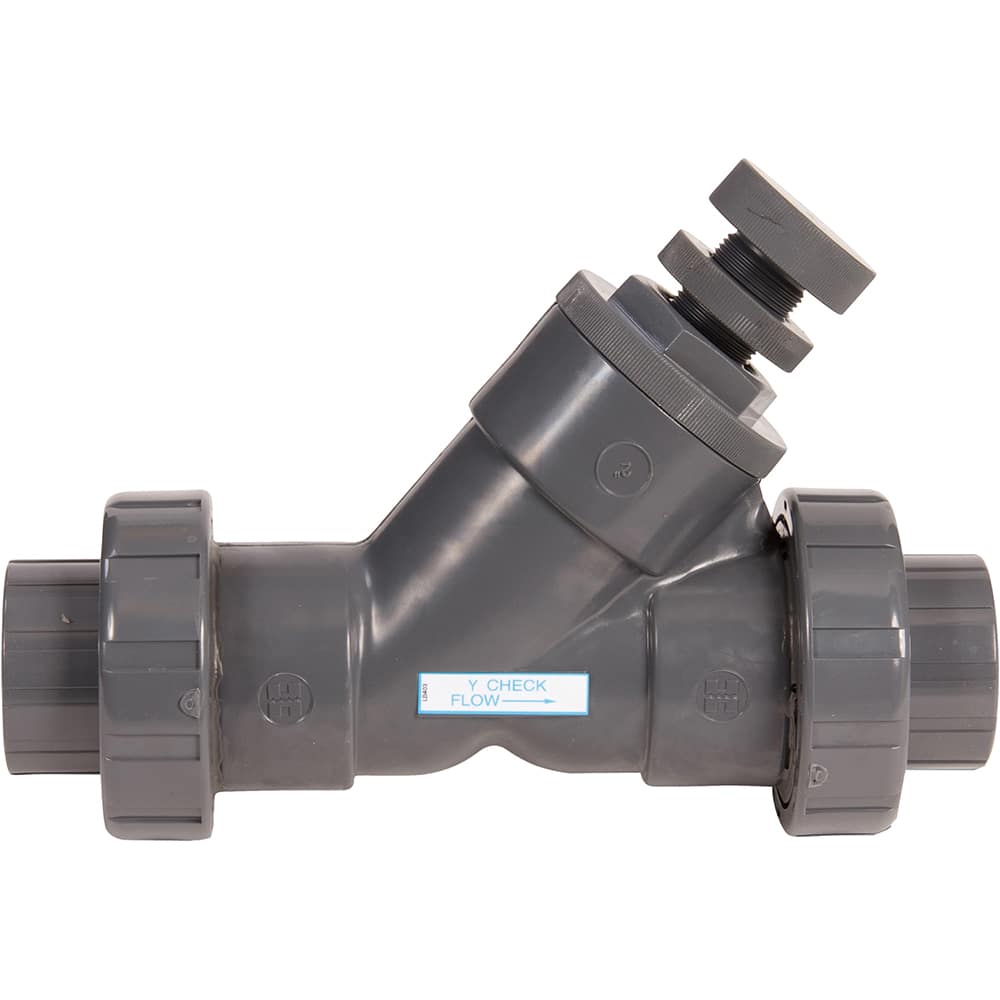

Hayward - Check Valves; Design: In-line; True Union Ball Check; Spring Check ; Tube Outside Diameter (mm): 76.200 ; Pipe Size (Inch): 3 ; Tube Outside Diameter (Inch): 3 ; End Connections: Socket ; Material: PVC
Item #: 15519366
Brand: Hayward
Model #: SLC10300SEU
Product Specifications
Check Valves; Design: In-line; True Union Ball Check; Spring Check ; Tube Outside Diameter (mm): 76.200 ; Pipe Size (Inch): 3 ; Tube Outside Diameter (Inch): 3 ; End Connections: Socket ; Material: PVC
| Design | In-line; True Union Ball Check; Spring Check |
| Tube Outside Diameter (mm) | 76.200 |
| Pipe Size (Inch) | 3 |
| Tube Outside Diameter (Inch) | 3 |
| End Connections | Socket |
| Material | PVC |
| Seal Material | EPDM |
| Material Grade | ASTM D1784 Cell Class 12454 |
| Spring Material | Stainless Steel |
| Crack Pressure (psi) | 15 |
| Maximum Temperature (F) | 140.000 |
| Minimum Temperature (F) | 40.000 |
| Overall Length (Decimal Inch) | 16.76560 |
| Maximum Working Pressure (psi) | 150.000 |
