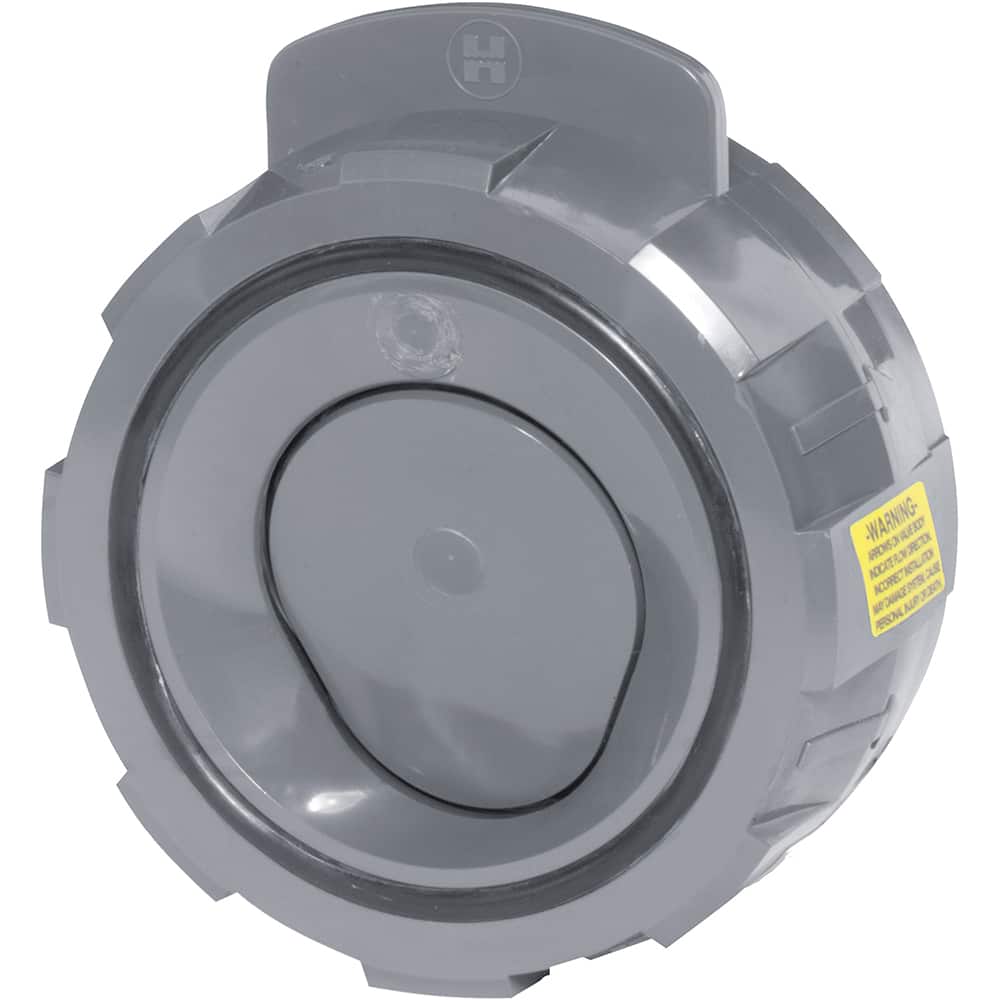

Hayward - Check Valves; Design: In-line; Wafer Check Valve ; Tube Outside Diameter (mm): 101.600 ; Pipe Size (Inch): 4 ; Tube Outside Diameter (Inch): 4 ; End Connections: Flanged ; Material: CPVC
Item #: 15515653
Brand: Hayward
Model #: WCV2400ES
Product Specifications
Check Valves; Design: In-line; Wafer Check Valve ; Tube Outside Diameter (mm): 101.600 ; Pipe Size (Inch): 4 ; Tube Outside Diameter (Inch): 4 ; End Connections: Flanged ; Material: CPVC
| Design | In-line; Wafer Check Valve |
| Tube Outside Diameter (mm) | 101.600 |
| Pipe Size (Inch) | 4 |
| Tube Outside Diameter (Inch) | 4 |
| End Connections | Flanged |
| Material | CPVC |
| Seal Material | EPDM |
| Material Grade | ASTM D1784 Cell Class 23447 |
| Spring Material | Stainless Steel |
| Crack Pressure (psi) | 1 |
| Maximum Temperature (F) | 190.000 |
| Minimum Temperature (F) | 40.000 |
| Overall Length (Decimal Inch) | 2.90630 |
| Maximum Working Pressure (psi) | 150.000 |
