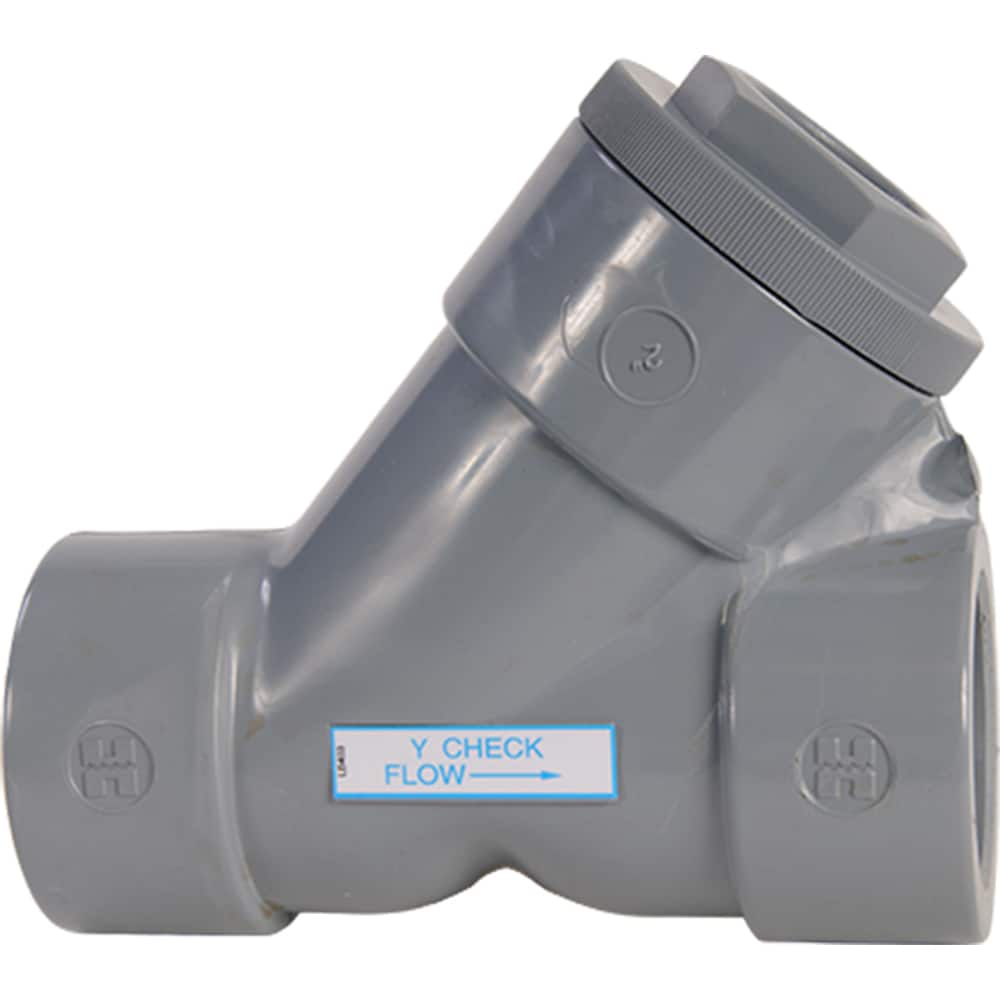

Hayward - Check Valves; Design: Y-Pattern ; Tube Outside Diameter (mm): 19.050 ; Pipe Size (Inch): 3/4 ; Tube Outside Diameter (Inch): 3/4 ; End Connections: Socket ; Material: CPVC
Item #: 15515612
Brand: Hayward
Model #: YC20075SE
Product Specifications
Check Valves; Design: Y-Pattern ; Tube Outside Diameter (mm): 19.050 ; Pipe Size (Inch): 3/4 ; Tube Outside Diameter (Inch): 3/4 ; End Connections: Socket ; Material: CPVC
| Design | Y-Pattern |
| Tube Outside Diameter (mm) | 19.050 |
| Pipe Size (Inch) | 3/4 |
| Tube Outside Diameter (Inch) | 3/4 |
| End Connections | Socket |
| Material | CPVC |
| Seal Material | EPDM |
| Material Grade | ASTM D1784 Cell Class 23447 |
| Crack Pressure (psi) | 1 |
| Maximum Temperature (F) | 190.000 |
| Minimum Temperature (F) | 40.000 |
| Overall Length (Decimal Inch) | 4.18750 |
| Maximum Working Pressure (psi) | 150.000 |
