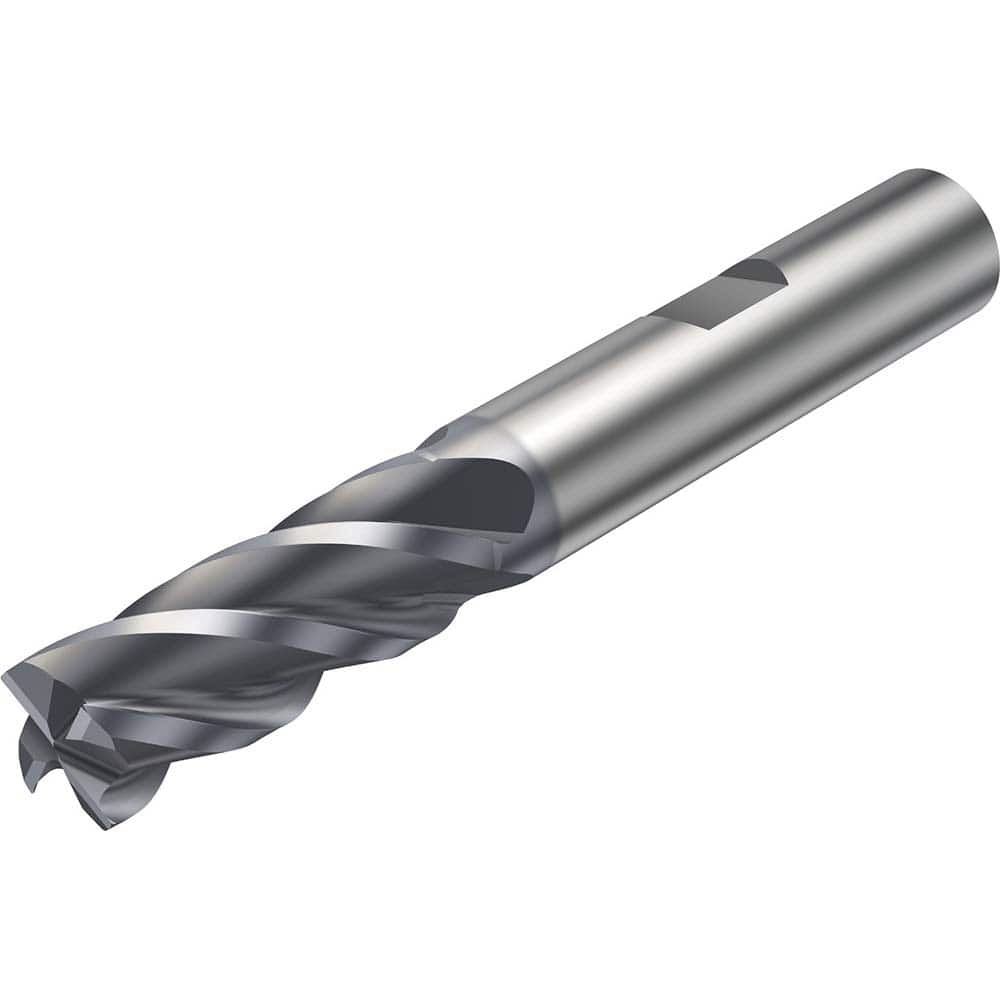

Corner Chamfer End Mill: 0.625″ Dia, 1.3125″ LOC, 4 Flute, 0.01″ Chamfer Width, Solid Carbide 3-1/2″ OAL, 5/8″ Shank Dia, 42 ° Helix, AlCrN Coated, Centercutting
Item #: 13913306
Brand: Sandvik Coromant
Model #: 7716334
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Chamfer Width (Decimal Inch) | 0.0100 |
| Mill Diameter (Inch) | 5/8 |
| Chamfer Angle | 45 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Chamfer |
| Flute Type | Helical |
| Helix Angle | 42 |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Cutting Direction | Right Hand |
| Series | CoroMill Plura |
| Single Or Double End | Single |
| Coating/Finish | AlCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.3125 |
