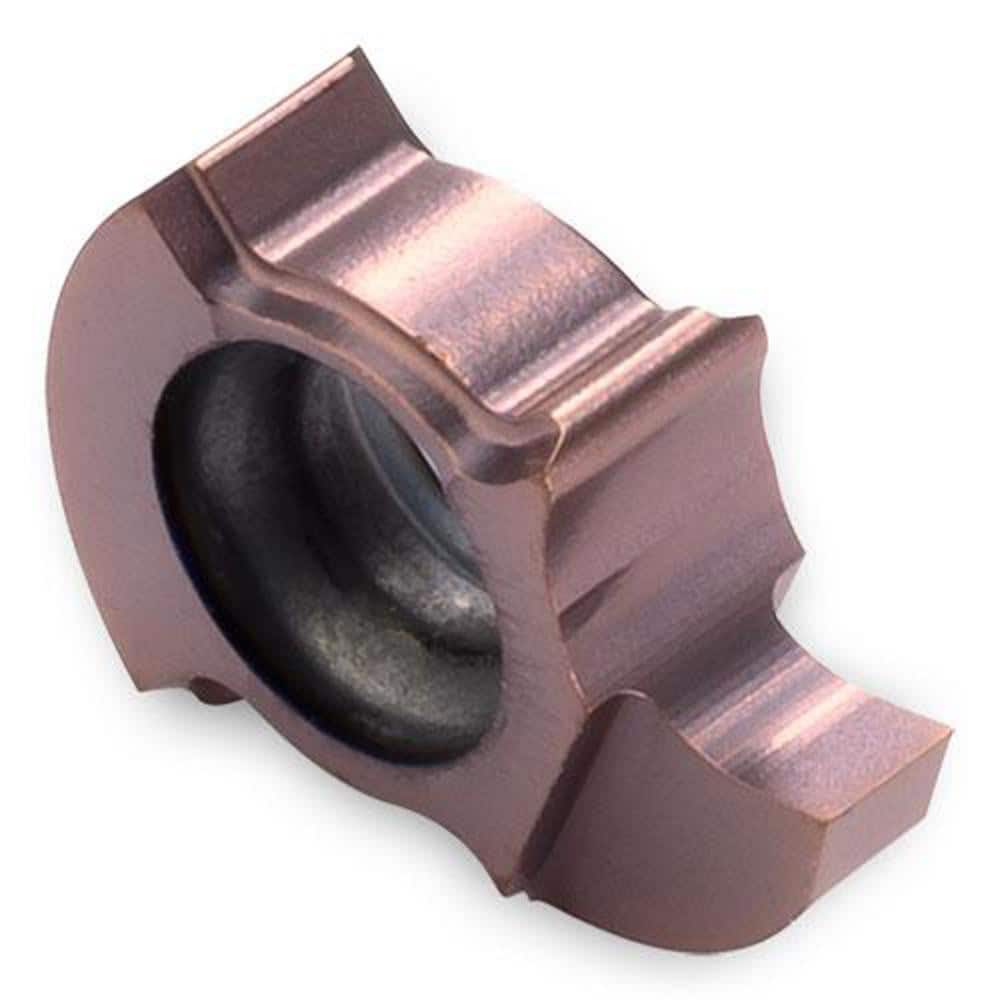

Grooving Insert: TMISS TT8020, Solid Carbide TiCN Finish, Neutral, 0.079″ Cutting Width, Series TMIS 8
Item #: 13388996
Brand: Ingersoll Cutting Tools
Model #: 6217827
Product Specifications
| Insert Style | TMIS |
| Insert Size Code | 8 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT8020 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | TMIS 8 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3100 |
| Overall Length (mm) | 0.31 |
| Primary Workpiece Material | Hard Material; Steel |
| Chip Breaker | S |
| Coating/Finish | TiCN |
