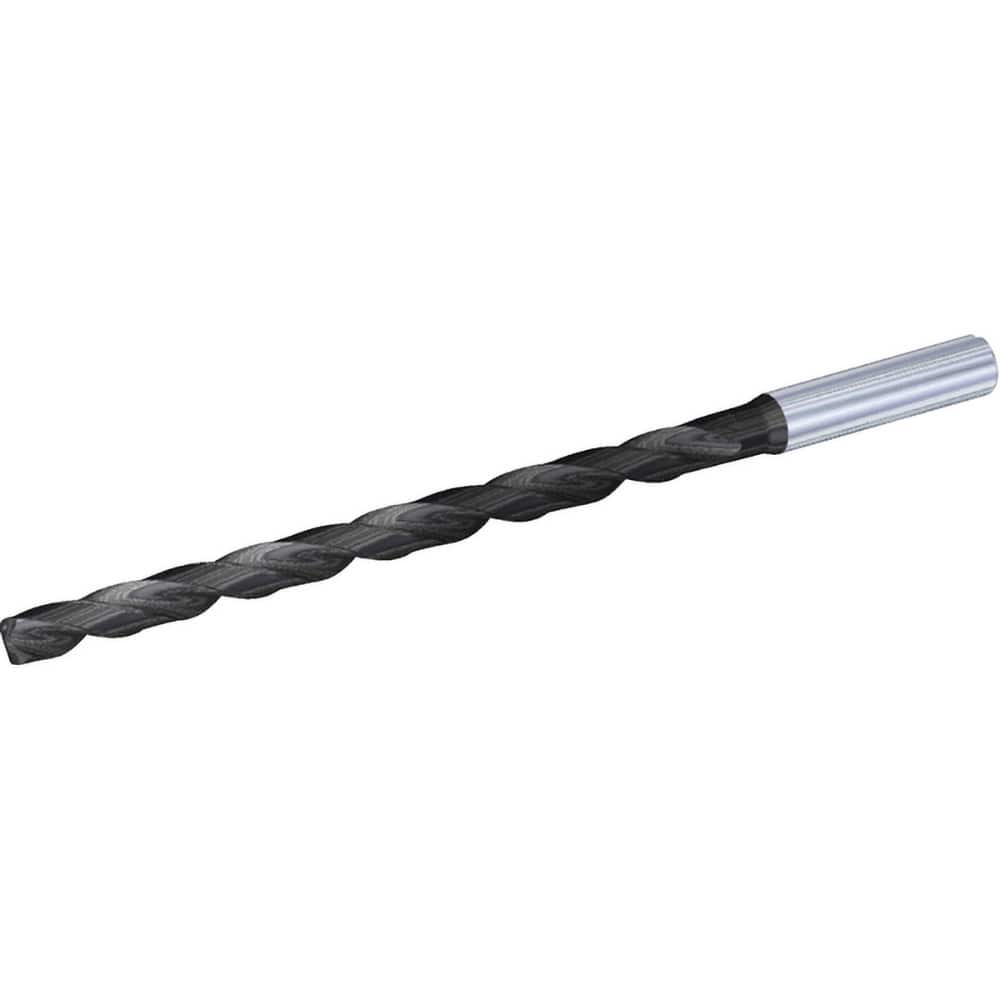

Extra Length Drill Bit: 0.7323″ Dia, 135 °, Solid Carbide TiAlN Finish, 10.9055″ Flute Length, 13.1496″ OAL, Helical Flute, Straight-Cylindrical Shank, Series B269
Item #: 13213376
Brand: Kennametal
Model #: 6003402
Product Specifications
| Drill Bit Size (mm) | 18.60 |
| Overall Length (mm) | 334.00 |
| Flute Length (mm) | 277.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Helical |
| Series | B269 |
| Cutting Direction | Right Hand |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.7323 |
| Overall Length (Decimal Inch) | 13.1496 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 20.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.00 |
| Flute Length (Decimal Inch) | 10.9055 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 9.3307 |
| Maximum Drilling Depth (mm) | 237.00 |
