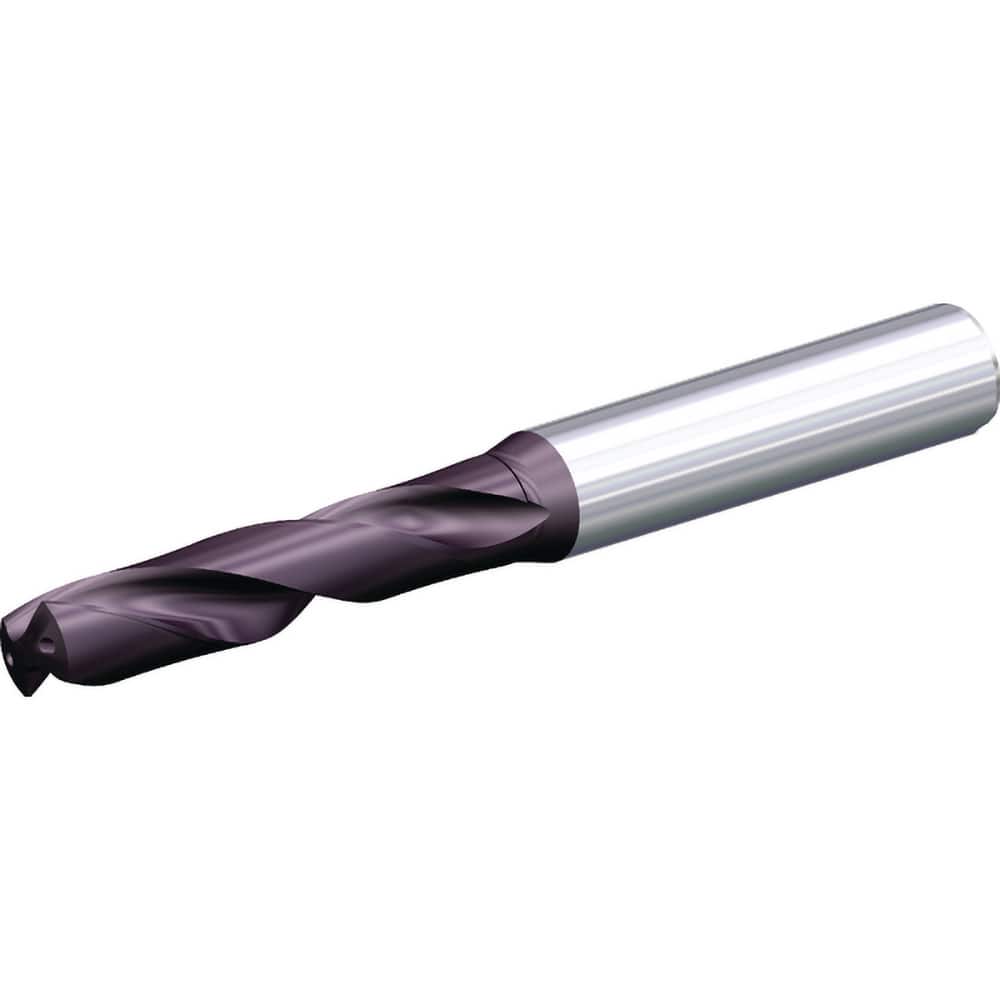

Taper Length Drill Bit: 0.1563″ Dia, 140 ° Coated, 1.9291″ Flute Length, 1.9291″ OAL, RH Cut, Helical Flute, Straight Shank, Series B212
Item #: 13211446
Brand: Kennametal
Model #: 6393624
Product Specifications
| Drill Bit Size (mm) | 3.97 |
| Tool Material | Solid Carbide |
| Coating/Finish | Coated |
| Flute Length (mm) | 49.00 |
| Shank Type | Straight |
| Flute Type | Helical |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 140 |
| Overall Length (Inch) | 1.9291 |
| Overall Length (mm) | 49.00 |
| Shank Diameter (mm) | 6.00 |
| Drill Bit Size (Decimal Inch) | 0.1563 |
| Flute Length (Decimal Inch) | 1.9291 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | B212 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 1.6142 |
| Maximum Drilling Depth (mm) | 41.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (Decimal Inch) | 0.0232 |
