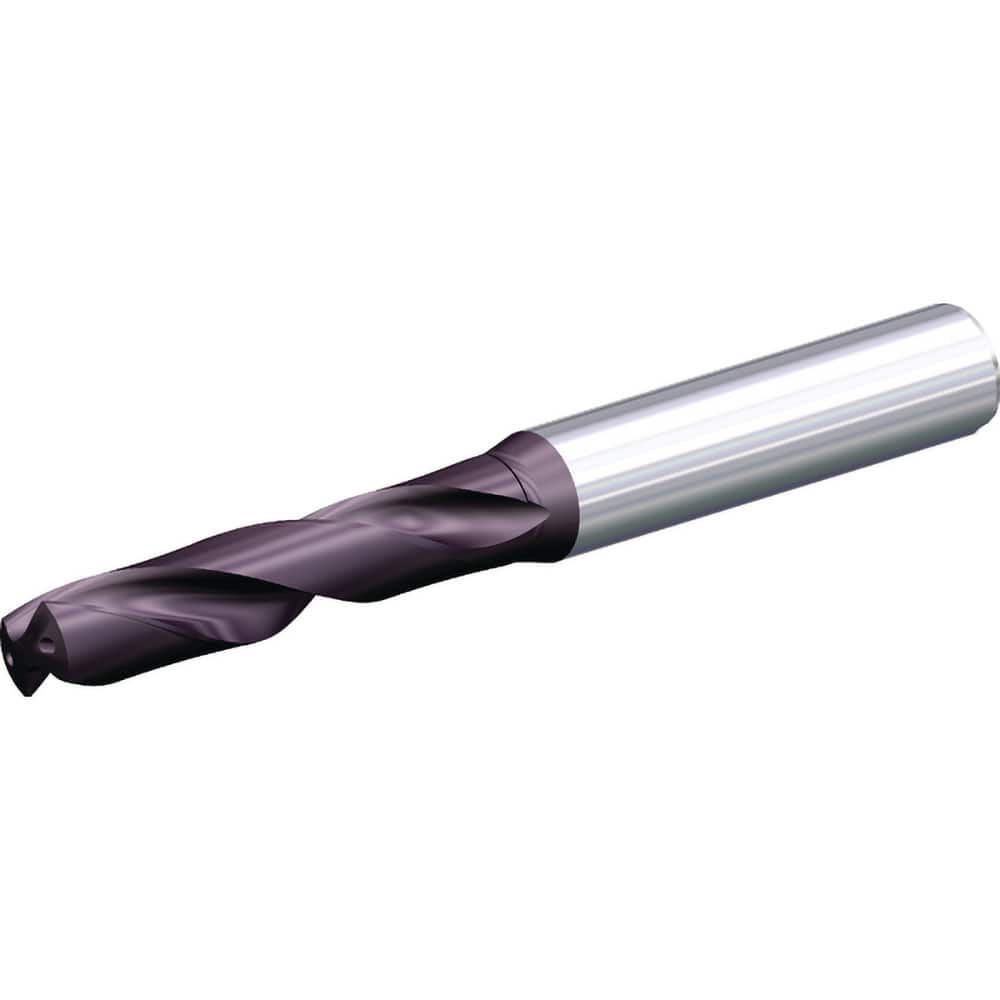

Jobber Length Drill Bit: 0.277″ Dia, 140 °, Solid Carbide AlTiN Finish, 3.5827″ OAL, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series B211
Item #: 13210901
Brand: Kennametal
Model #: 6393603
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2770 |
| Drill Bit Size (mm) | 7.03 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 91.00 |
| Overall Length (Decimal Inch) | 3.5827 |
| Flute Length (mm) | 53.00 |
| Flute Length (Decimal Inch) | 2.0866 |
| Series | B211 |
| Flute Length x Diamter Ratio | 6xD |
| Flute By Diameter Ratio | 6xD |
| Shank Diameter (mm) | 8.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.6929 |
| Maximum Drilling Depth (mm) | 43.00 |
| Shank Length (mm) | 36.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 1.04 |
| Drill Point Length (Decimal Inch) | 0.0409 |
