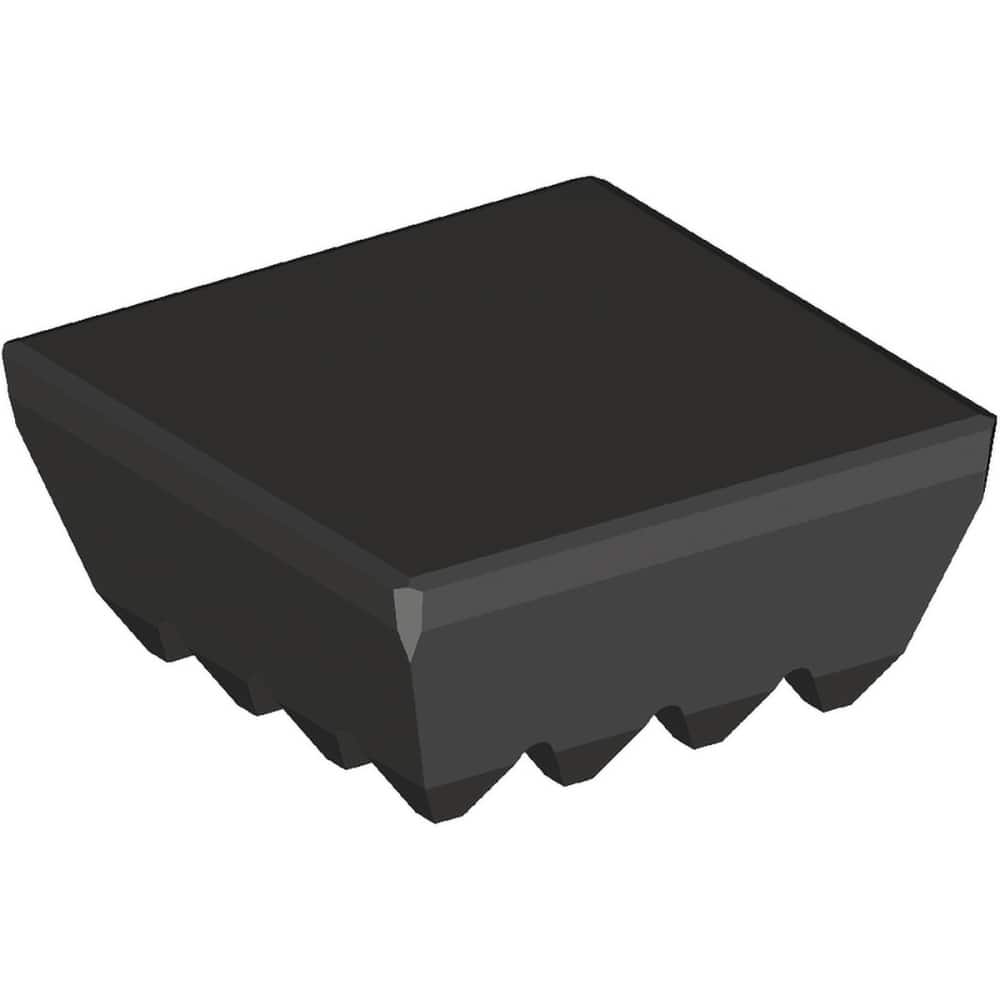

Reaming Inserts; Insert Style: Square 90; Insert Size: RIQ09; Material: BN-High CBN; Inscribed Circle (Decimal Inch): 0.3540; Inscribed Circle (mm): 9.0000; Length (Decimal Inch): 0.3540; Relief Angle: 0; Length (mm): 9.0000; Width (Decimal Inch): 0.3540;
Item #: 13201629
Brand: Kennametal
Model #: 6183839
Product Specifications
| Insert Style | Square 90 |
| Insert Size | RIQ09 |
| Material | BN-High CBN |
| Inscribed Circle (Decimal Inch) | 0.3540 |
| Inscribed Circle (mm) | 9.0000 |
| Length (Decimal Inch) | 0.3540 |
| Relief Angle | 0 |
| Length (mm) | 9.0000 |
| Width (Decimal Inch) | 0.3540 |
| Width (mm) | 9.0000 |
| Thickness (Decimal Inch) | 0.1240 |
| Thickness (mm) | 3.1500 |
| Application | Reaming |
