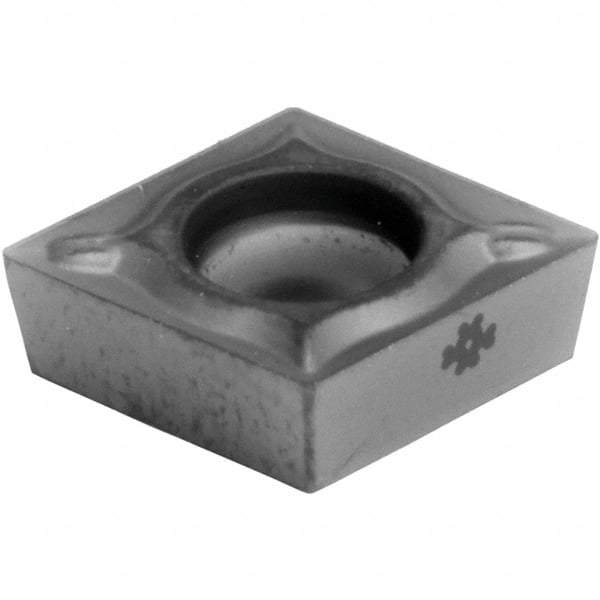

Sumitomo - CCMT32.51 ESU Grade AC5025S Carbide Turning Insert - TiAlSiN Finish, 80° Diamond, 3/8" Inscr Circle, 0.156" Thick, 0.0156" Corner Radius
Item #: 12594982
Brand: Sumitomo
Model #: 19T6BPE
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 32.51 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | AC5025S |
| Coating | TiAlSiN |
| Material Grade | S20 |
| Chip Breaker | ESU |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Rake Angle | 8 |
| Relief Angle | 7 |
| Proprietary Coating Designation | Absotech Bronze |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCMT32.51ESU-AC5025S |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | AC5000S |
| Insert Holding Method | Screw-On |
| FullRadius | No |
| Shape | Diamond |
