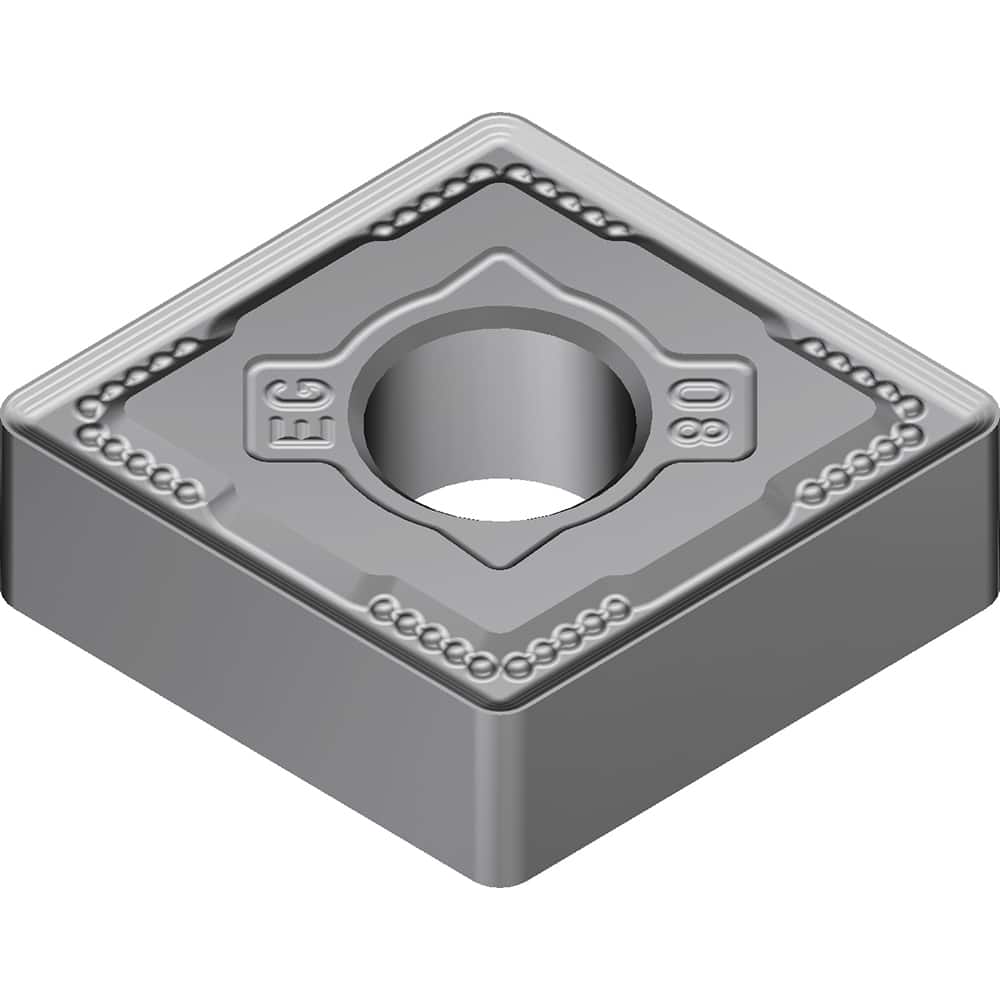

CNMG643EEG AC8015P Carbide Turning Insert Absotech Finish, 0.7598″ Long, 3/4″ Inscribed Circle, 0.0472″ Corner Radius, 1/4″ Thick, 80° Included Angle, Series AC8000P
Item #: 12069142
Brand: Sumitomo
Model #: 19T4CHV
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 643 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC8015P |
| Hole Diameter (Decimal Inch) | 0.3126 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | AC8000P |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.7598 |
| Primary Workpiece Material | Steel |
| Iso Code | CNMG190612N-EG |
| Manufacturers Catalog Number | CNMG643EEG-AC8015P |
| Chip Breaker | EEG |
| Coating/Finish | Absotech |
