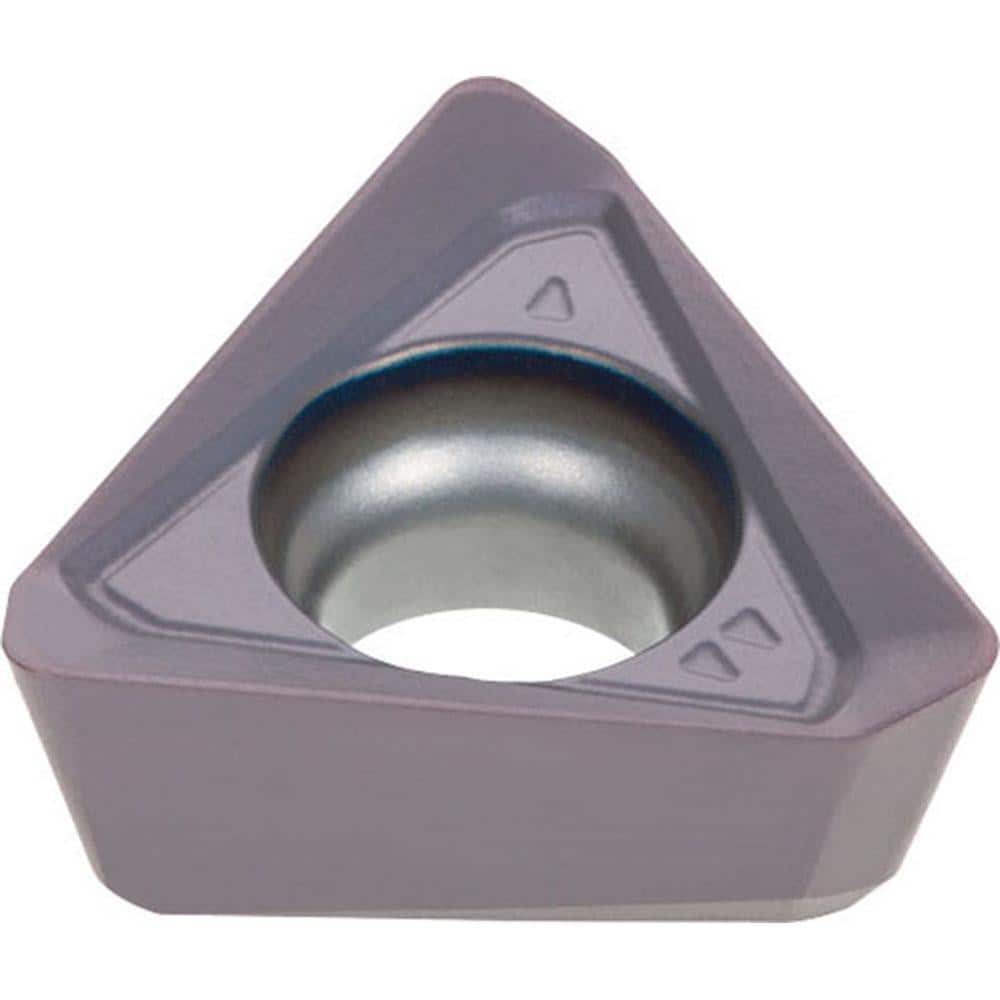

Milling Insert: AH3135, Solid Carbide N/A Finish,
Item #: 11938511
Brand: Tungaloy
Model #: 6776065
Product Specifications
| Insert Style | TOET |
| Insert Size Code | 10 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH3135 |
| Inscribed Circle (Decimal Inch) | 0.3390 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Insert Hand | Neutral |
| Series | TOET |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number Of Cutting Edges | 3 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4130 |
| Insert Shape | Triangle |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Superalloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; H; M |
| Chip Breaker | MJ |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2010 |
