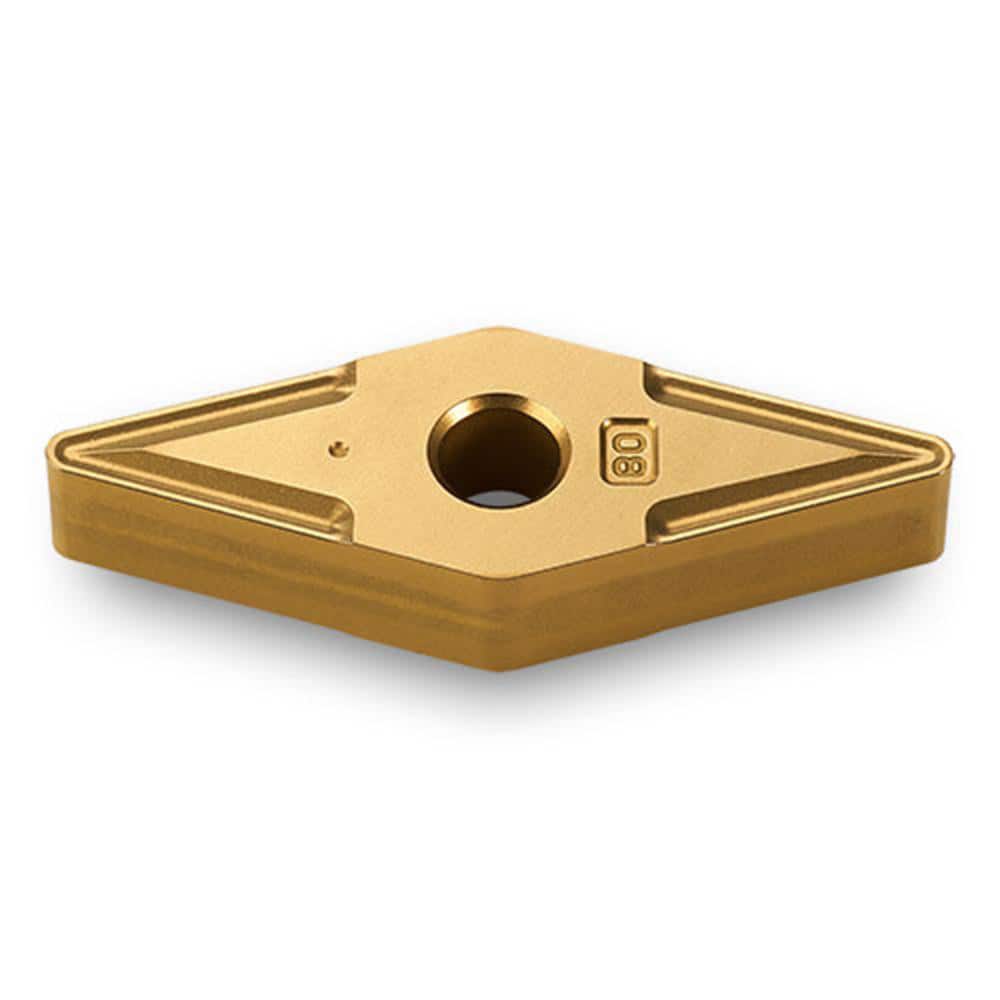

Turning Insert: VNMG432 TT7015, Solid Carbide TiCN & Al2O3 Finish, Neutral, 0.8700″ Long, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 35.0 ° N/A Diamond, Series VNMG
Item #: 11839818
Brand: Ingersoll Cutting Tools
Model #: 6137651
Product Specifications
| Insert Style | VNMG |
| Insert Shape Code | V |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT7015 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Series | VNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.8700 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | VNMG432TT7015 |
| Iso Code | VNMG220408 TT7015 |
| Chip Breaker | Common |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Coating/Finish | TiCN; Al2O3 |
