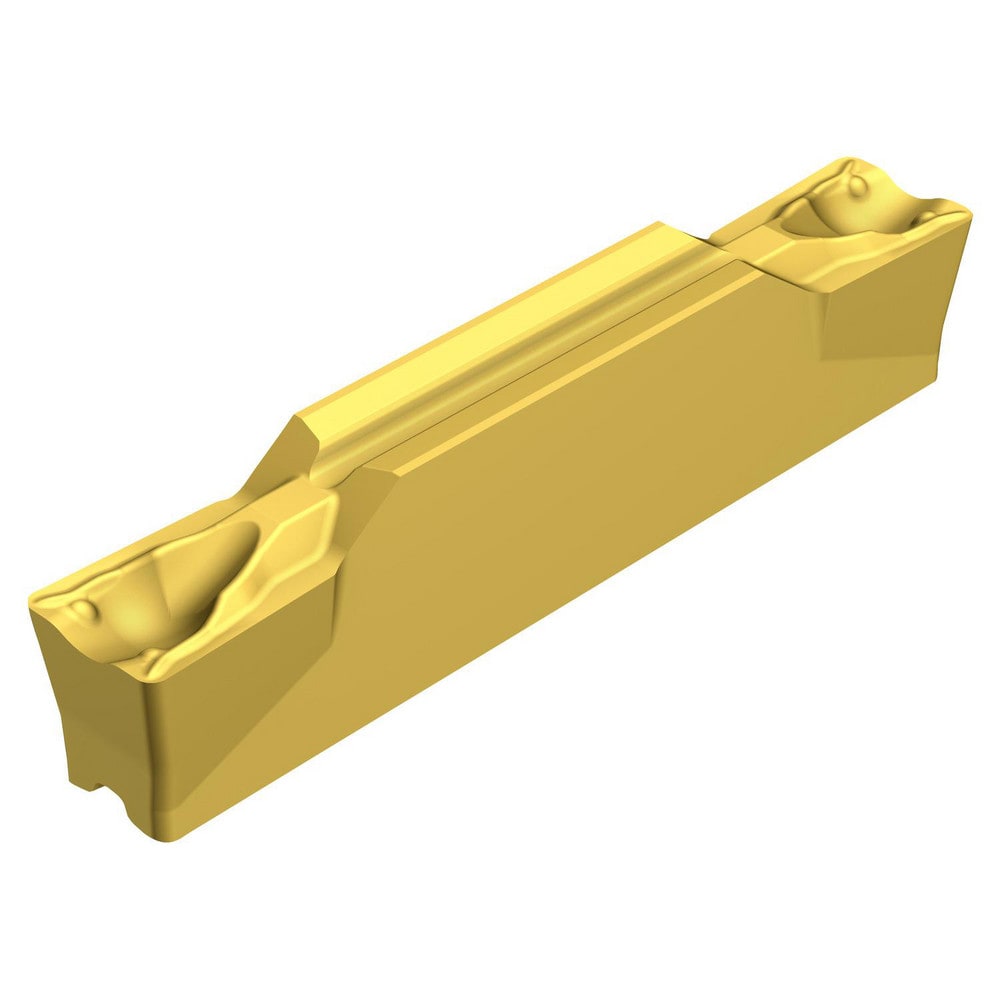

Grooving Insert: C2I J2 TF, 1135, Carbide
Item #: 77286466
Brand: Sandvik Coromant
Model #: 8194372
Product Specifications
| Insert Style | C2I |
| Insert Size Code | J |
| Cutting Width (Decimal Inch) | 0.1969 |
| Cutting Width (mm) | 5.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1063 |
| Maximum Depth of Cut (mm) | 2.70 |
| Insert Material | Carbide |
| Manufacturer Grade | 1135 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.4 |
| Number Of Cutting Edges | 2 |
| Rake | Neutral |
| Measurement Type | Metric |
| Face Grooving | Yes |
| Insert Holding Method | Clamp |
| Insert Size | J2 |
| Cutting Height (mm) | 23.42 |
| Cutting Height (Decimal Inch) | 0.9220 |
| Lead Angle | 0.000 |
| Multi-use Tool | Yes |
| Series | C2I |
| Coating Process | CVD |
| Rake Angle | 16.000 |
| Overall Length (Decimal Inch) | 0.9726 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | C2I-J2N-0500-0004-TF1135 |
| Iso Code | C2I-J2N-0500-0004-TF1135 |
| Manufacturers Catalog Number | C2I-J2N-0500-0004-TF1135 |
| UNSPSC Code | 23242105 |
| Chip Breaker | TF |
| Insert Seat Size | 5 |
| Overall Width (mm) | 5.0000 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1969 |
| Coating/Finish | TiCrN/Al2O3/TiN |
| For Use With | Indexable Grooving Toolholders |
| Country of Origin | Sweden |
