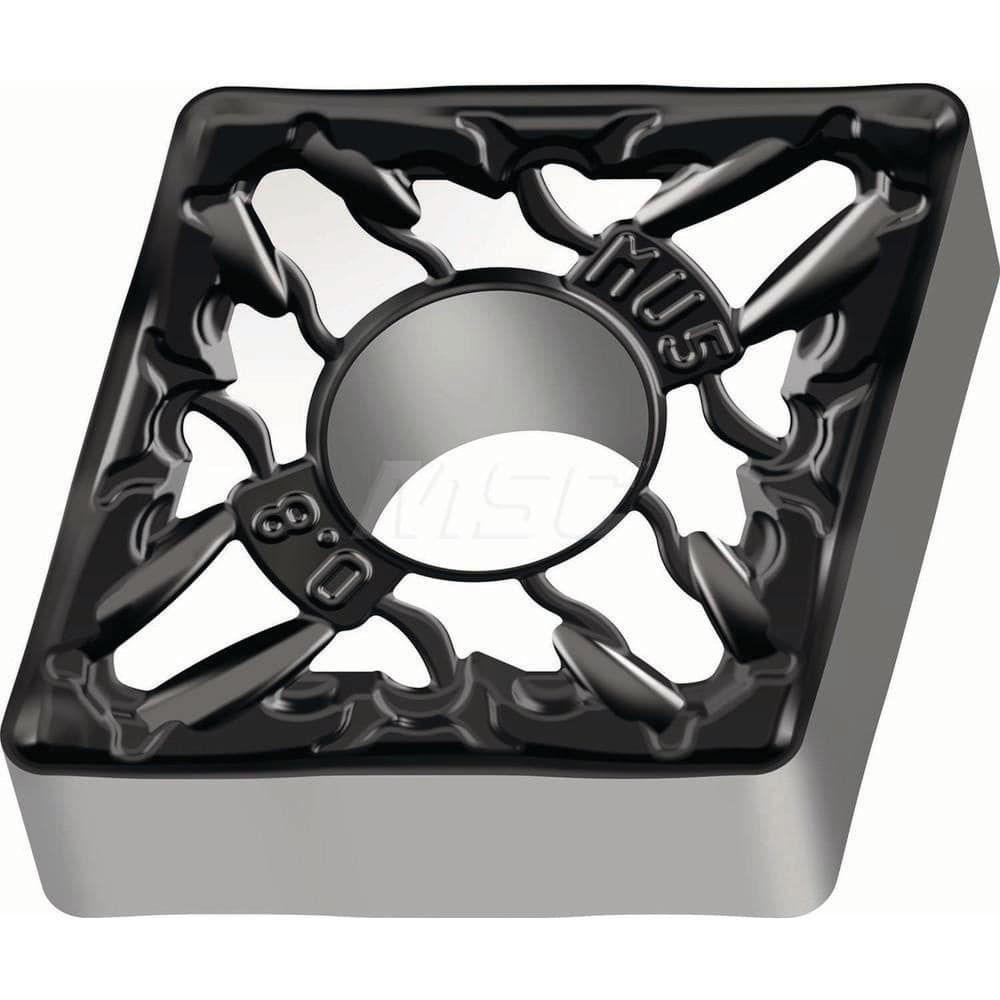

Turning Insert: CNMG543-MU5 WSM20S, TiAlN, Al2O3 & Al Finish, Neutral, 5/8″ Inscribed Circle, 80.0 ° N/A Rhombic,
Item #: 11489465
Brand: Walter
Model #: 7895058
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 160612 |
| Insert Shape | Rhombic |
| Clearance Code | N |
| Tolerance Code | M |
| Manufacturer Grade | WSM20S |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 5/8 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Corner Radius (mm) | 1.20 |
| Included Angle | 80.0 |
| Coating Process | PVD |
| Insert Length (mm) | 16.12 |
| Manufacturers Catalog Number | CNMG160612-MU5 WSM20S |
| Cutting Direction | Neutral |
| Chip Breaker | MU5 |
| Coating/Finish | Al; TiAlN; Al2O3 |
