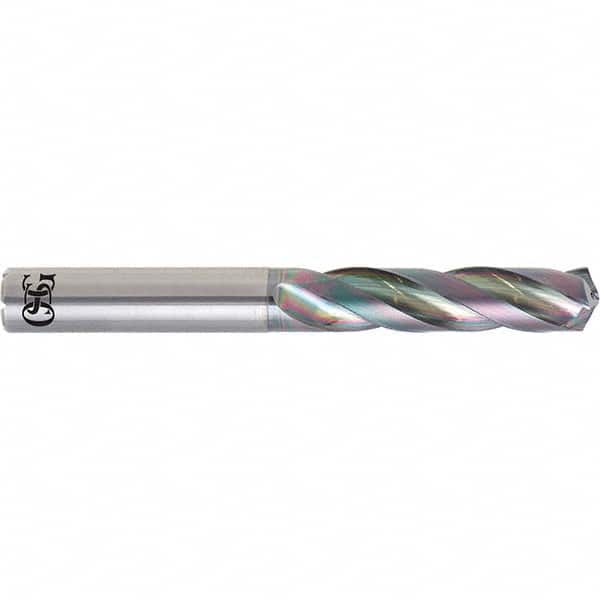

Screw Machine Length Drill Bit: 0.3425″ Dia, 140 °, Solid Carbide EgiAs Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 6600
Item #: 11439056
Brand: OSG
Model #: 8720870
Product Specifications
| Drill Bit Size (mm) | 8.70 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | EgiAs |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Point Type | R Thinning |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Bit Size (Decimal Inch) | 0.3425 |
| Overall Length (mm) | 101.00 |
| Overall Length (Decimal Inch) | 3.9764 |
| Shank Diameter (mm) | 10.00 |
| Series | 6600 |
| Point Type | R-Thinned |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 44.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| Drill Bit Size Range (mm) | 8.00 to 9.50 |
