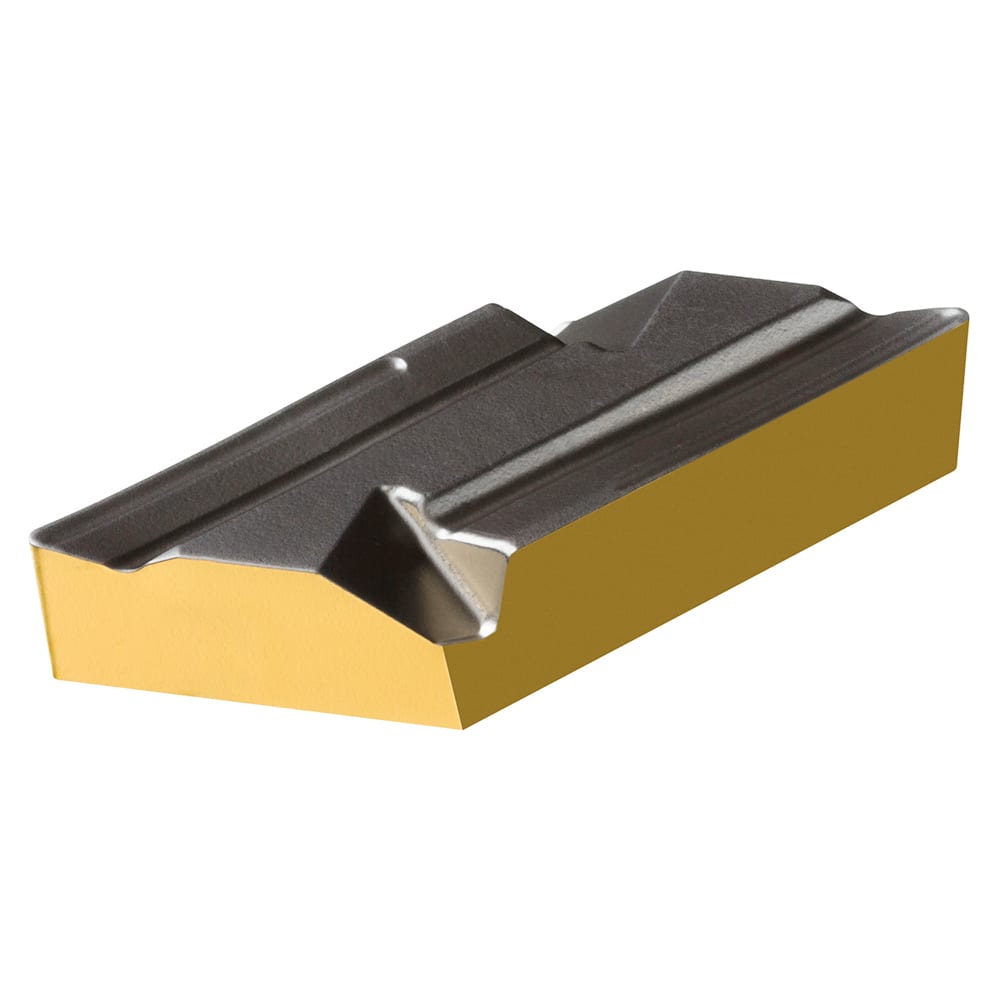

Turning Insert: KNMX16 04 05 L-71 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Left Hand, 0.0197″ Corner Radius, N/A Series KNMX
Item #: 10798429
Brand: Sandvik Coromant
Model #: 8019544
Product Specifications
| Insert Style | KNMX |
| Insert Shape Code | K |
| Insert Size Code | 1604 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Insert Holding Method | Clamp |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Relief Angle | 0 |
| Series | KNMX |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | KNMX 16 04 05 L-71 4425 |
| Manufacturers Catalog Number | KNMX160405L714425 |
| Cutting Direction | Left Hand |
| Chip Breaker | 71 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Coating/Finish | TiCN; TiN; Al2O3 |
