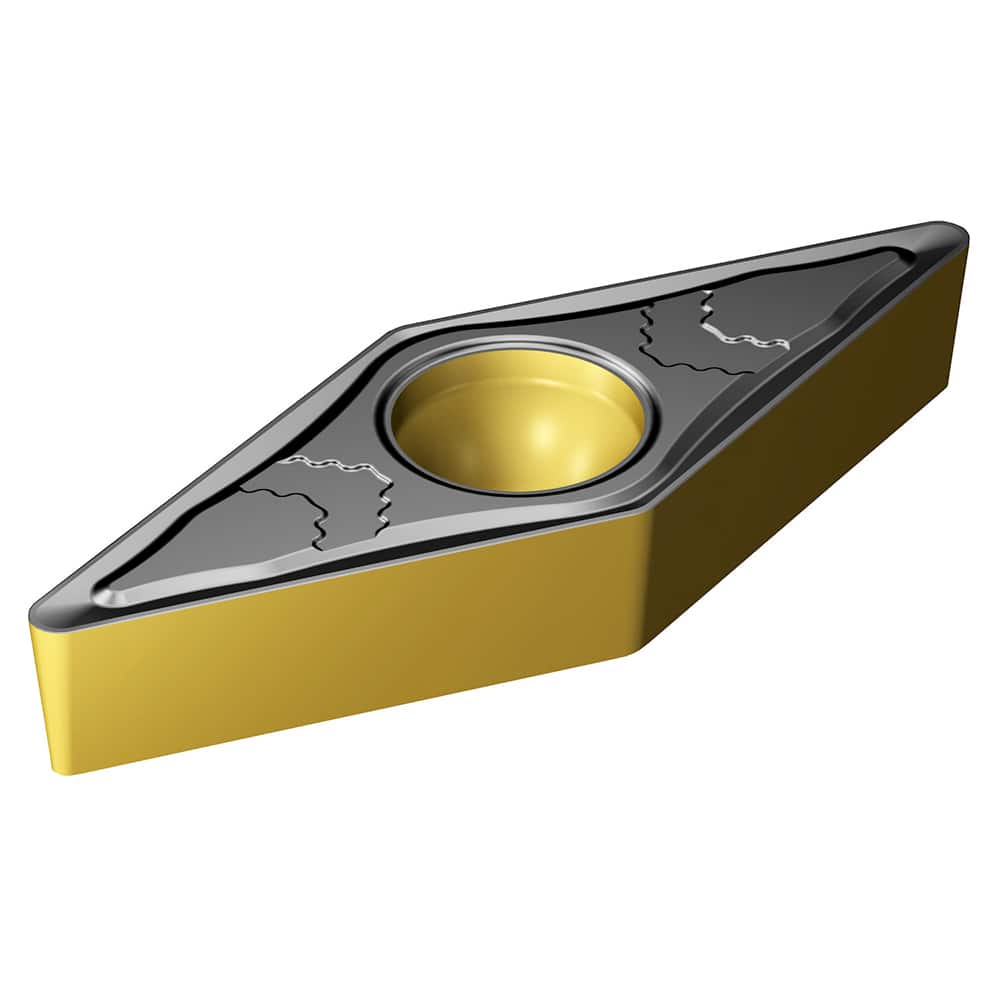

Turning Insert: VBMT 16 04 08-PMC 4415, TiCN, Al2O3 & TiN Finish, Neutral, 0.0313″ Corner Radius, N/A Series VBMT-PMC
Item #: 10796365
Brand: Sandvik Coromant
Model #: 8020983
Product Specifications
| Insert Style | VBMT |
| Insert Shape Code | V |
| Insert Size Code | 1604 |
| Clearance Code | B |
| Tolerance Code | M |
| Manufacturer Grade | 4415 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 5 |
| Series | VBMT-PMC |
| Coating Process | CVD |
| Secondary Workpiece Material | K |
| Iso Code | VBMT 16 04 08-PMC 4415 |
| Manufacturers Catalog Number | VBMT 16 04 08-PMC 4415 |
| Cutting Direction | Neutral |
| Chip Breaker | PR |
| Coating/Finish | TiCN; TiN; Al2O3 |
