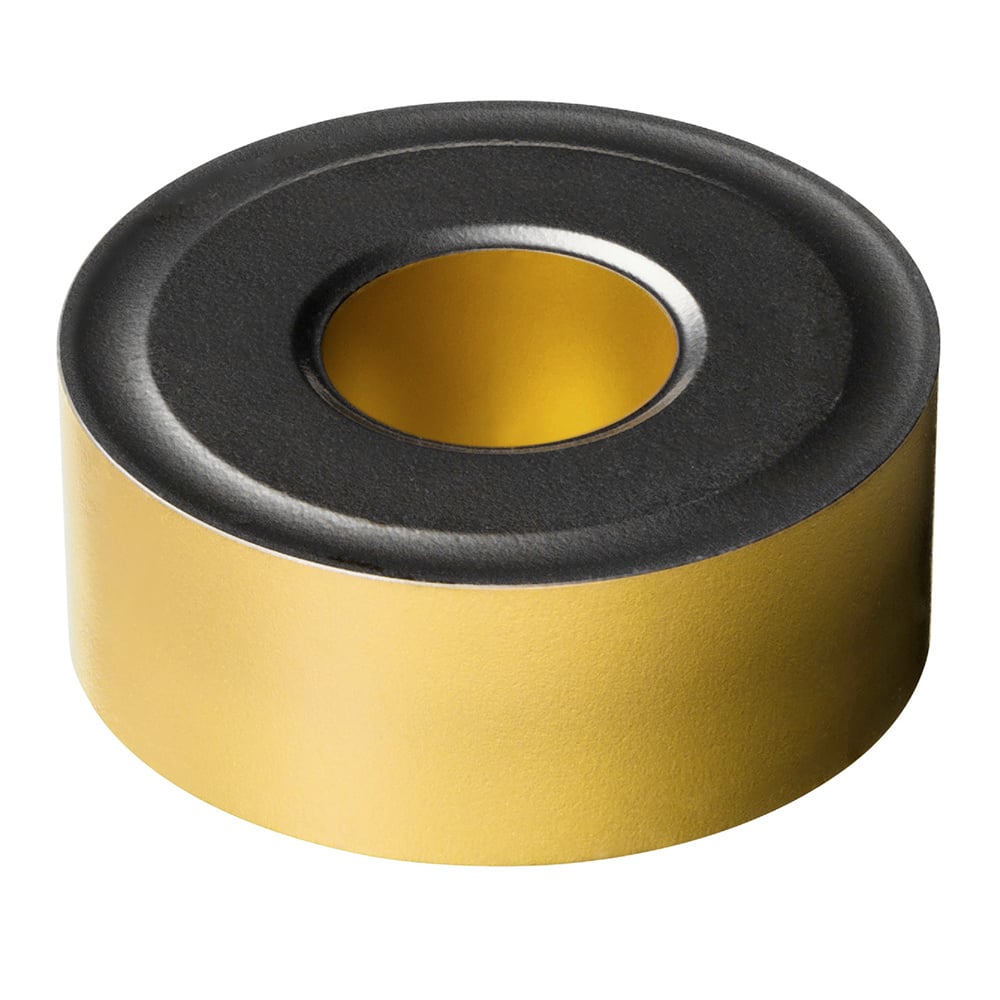

Turning Insert: RNMG 15 06 00 4415, TiCN, Al2O3 & TiN Finish, Neutral, 0.3125″ Corner Radius, N/A Series RNMG
Item #: 10795029
Brand: Sandvik Coromant
Model #: 8021239
Product Specifications
| Insert Style | RNMG |
| Insert Shape Code | R |
| Insert Size Code | 1506 |
| Clearance Code | N |
| Tolerance Code | M |
| Manufacturer Grade | 4415 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.3125 |
| Relief Angle | 0 |
| Series | RNMG |
| Coating Process | CVD |
| Secondary Workpiece Material | K |
| Iso Code | RNMG 15 06 00 4415 |
| Manufacturers Catalog Number | RNMG 15 06 00 4415 |
| Cutting Direction | Neutral |
| Chip Breaker | PR |
| Coating/Finish | TiCN; TiN; Al2O3 |
