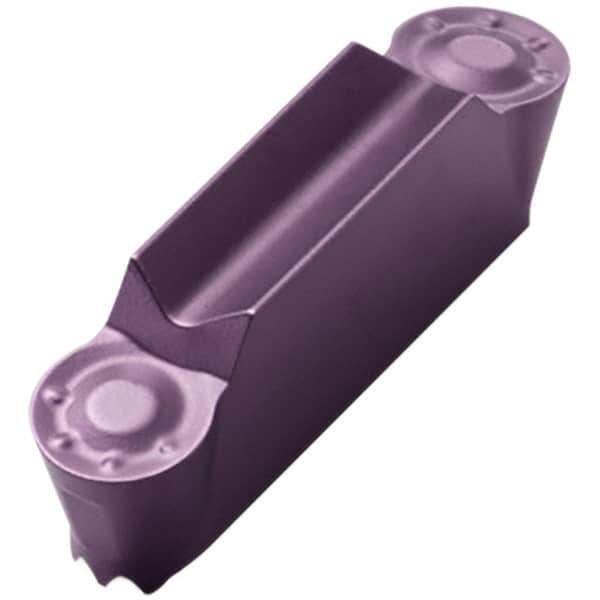

Seco - LCMF, 6mm Cutting Width, MP, TGH1050 Grade, Double End Multi-Directional Turning Insert - TiAlN/TiSiN Finish, 0.4mm Corner Radius
Item #: 10651297
Brand: Seco
Model #: 78303
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LCMF |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Material Grade | C1 |
| Manufacturer's Grade | TGH1050 |
| Thickness (Decimal Inch) | 0.1622 |
| Cutting Width (mm) | 6.00 |
| Cutting Height (Decimal Inch) | 0.1622 |
| Corner Radius (mm) | 0.40 |
| Maximum Corner Radius (Decimal Inch) | 0.0157 |
| Minimum Corner Radius (Decimal Inch) | 0.0157 |
| Single or Double End | Double |
| Chipbreaker | MP |
| Insert Seat Size | 6 |
| Insert Length (Decimal Inch) | 0.7079 |
| Series | LCMF |
| Coating | TiAlN/TiSiN |
| Coating Process | PVD |
| Insert Holding Method | Clamp |
