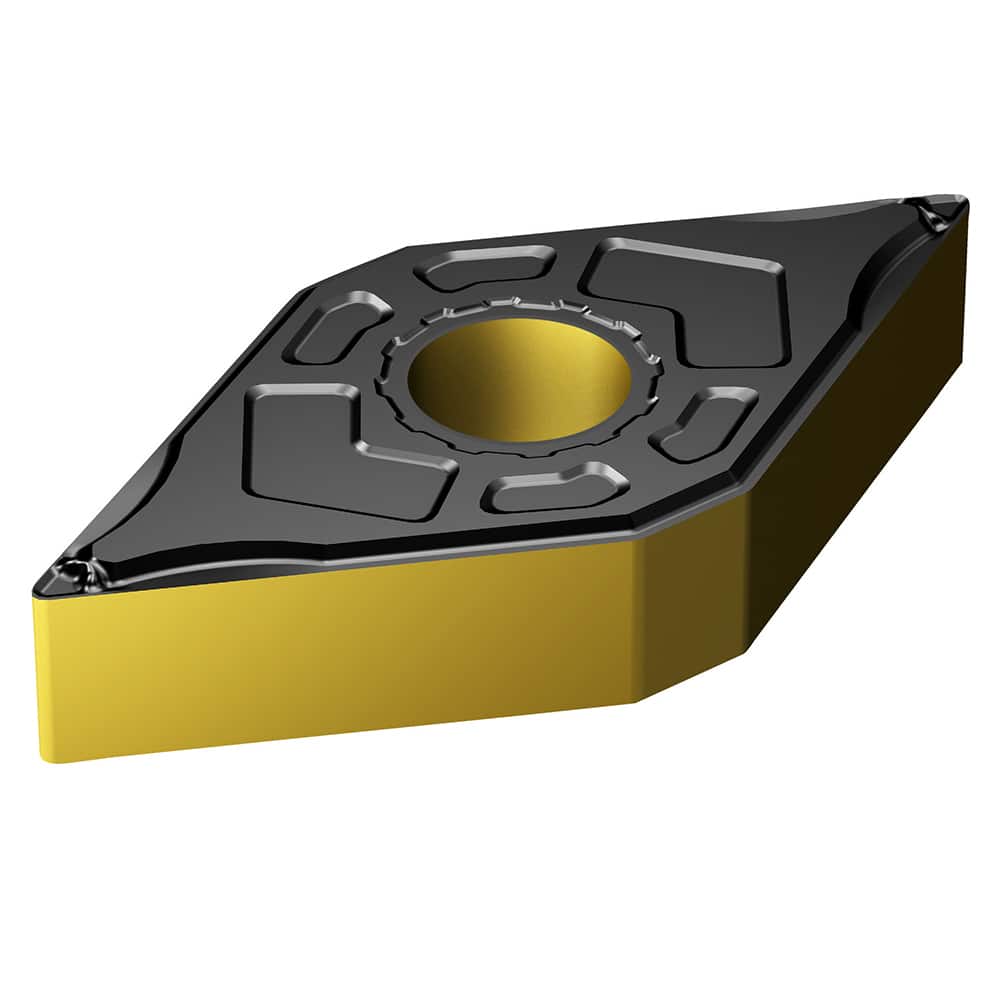

DNMG441-LC 4415 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 1/2″ Inscribed Circle, 0.0156″ Corner Radius, 1/4″ Thick, 55° Trigon
Item #: 10205839
Brand: Sandvik Coromant
Model #: 7860529
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 150604 |
| Insert Shape | Trigon |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4415 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Iso Code | DNMG 15 06 04-LC 4415 |
| Manufacturers Catalog Number | DNMG 441-LC |
| Cutting Direction | Neutral |
| Chip Breaker | G |
| Industry Standard Number | DNMG 15 06 04-LC 4415 |
| Coating/Finish | TiCN; TiN; Al2O3 |
