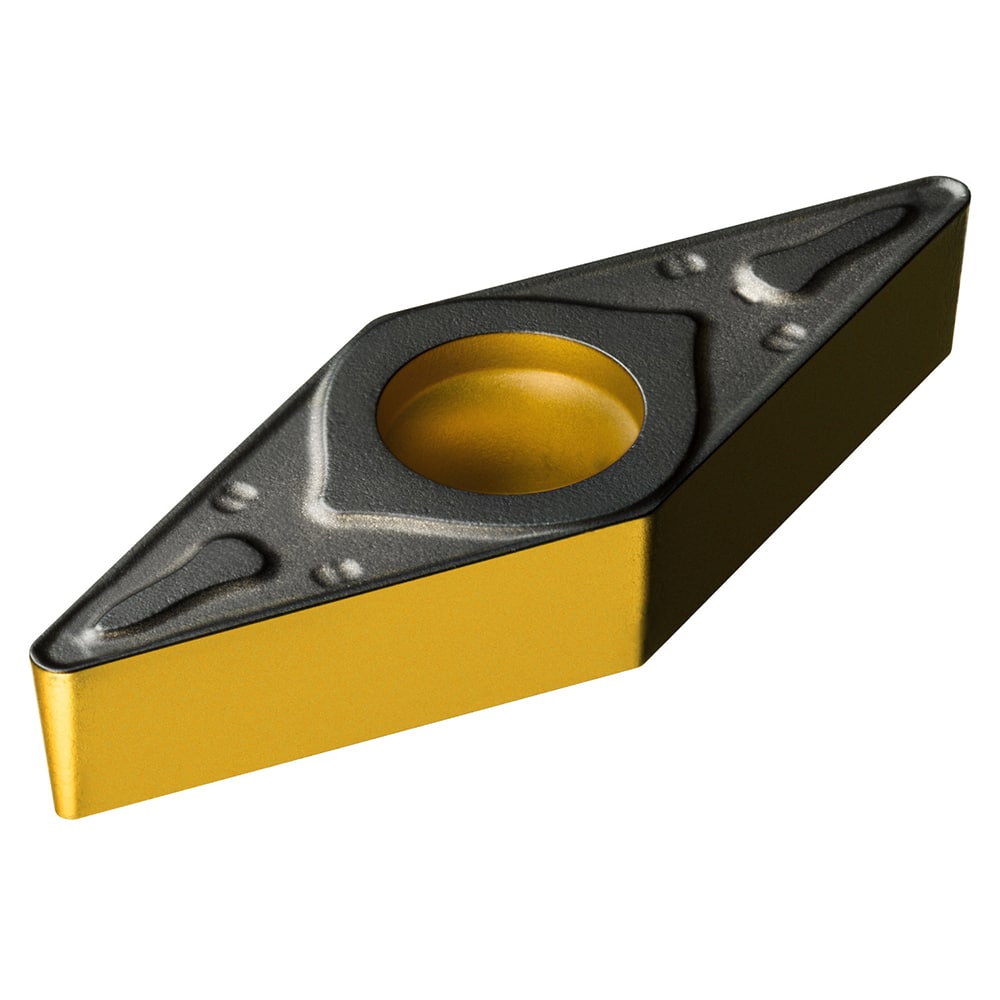

VBMT333-PR 4415 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 3/8″ Inscribed Circle, 0.0469″ Corner Radius, 3/16″ Thick, 35° Diamond
Item #: 10205615
Brand: Sandvik Coromant
Model #: 7860523
Product Specifications
| Insert Style | VBMT |
| Insert Shape Code | V |
| Insert Size Code | 160412 |
| Insert Shape | Diamond |
| Clearance Code | B |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4415 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Coating Process | CVD |
| Primary Workpiece Material | P; K |
| Iso Code | VBMT 16 04 12-PR 4415 |
| Manufacturers Catalog Number | VBMT 333-PR |
| Cutting Direction | Neutral |
| Chip Breaker | T |
| Industry Standard Number | VBMT 16 04 12-PR 4415 |
| Coating/Finish | TiCN; TiN; Al2O3 |
