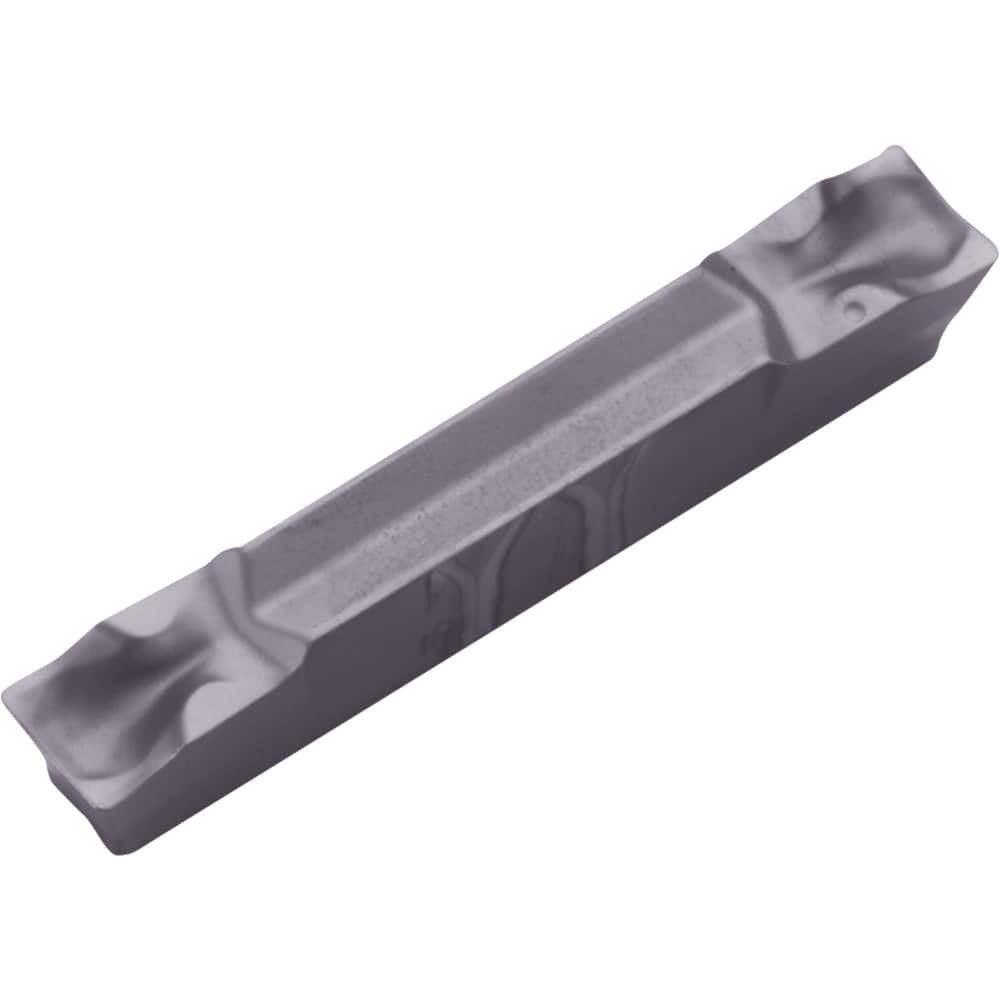

Grooving Insert: GMM3020TMR PR1115, Solid Carbide TiAlN Finish, Right Hand, 3 mm Cutting Width, 20 mm Max Depth, Series KGM
Item #: 10161990
Brand: Kyocera
Model #: TJY13331
Product Specifications
| Insert Style | GMM |
| Insert Size | 3020 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1115 |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 20.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.25 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 6 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Series | KGM |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.7874 |
| Manufacturers Catalog Number | GMM3020RTMR6DPR1115 |
| Chip Breaker | TMR |
| Coating/Finish | TiAlN |
| Number Of Cutting Edges | 2 |
| For Use With | KGMMR...3; KGMR...2.5; KGMSL...3; KGMR...-2(T); KGMR...-3(T); KGMML...3; KGMR...-2- |
| Insert Thickness | 4.00 |
