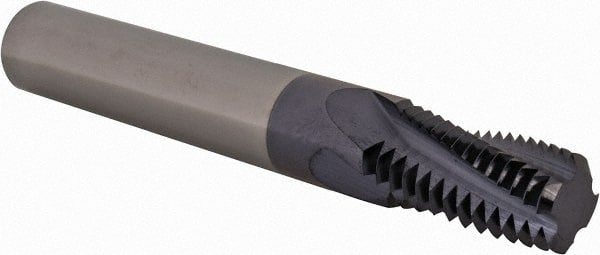

Allied Machine and Engineering - 1/2-14, 3/4-14 Internal/External 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 63561039
Brand: Allied Machine and Engineering
Model #: TM14NPT
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat resistant and used for high speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Threads Per Inch | 14 |
| Material | Solid Carbide |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.4950 |
| Length of Cut (Decimal Inch) | 0.8750 |
| Length of Cut (Inch) | 7/8 |
| Finish/Coating | TiAlN |
| Through Coolant | NonThrough Coolant |
| Minimum Nominal Diameter | 1/2 |
| Minimum Nominal Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.5000 |
| Thread Standard | NPT |
| Flute Direction | Right Hand |
