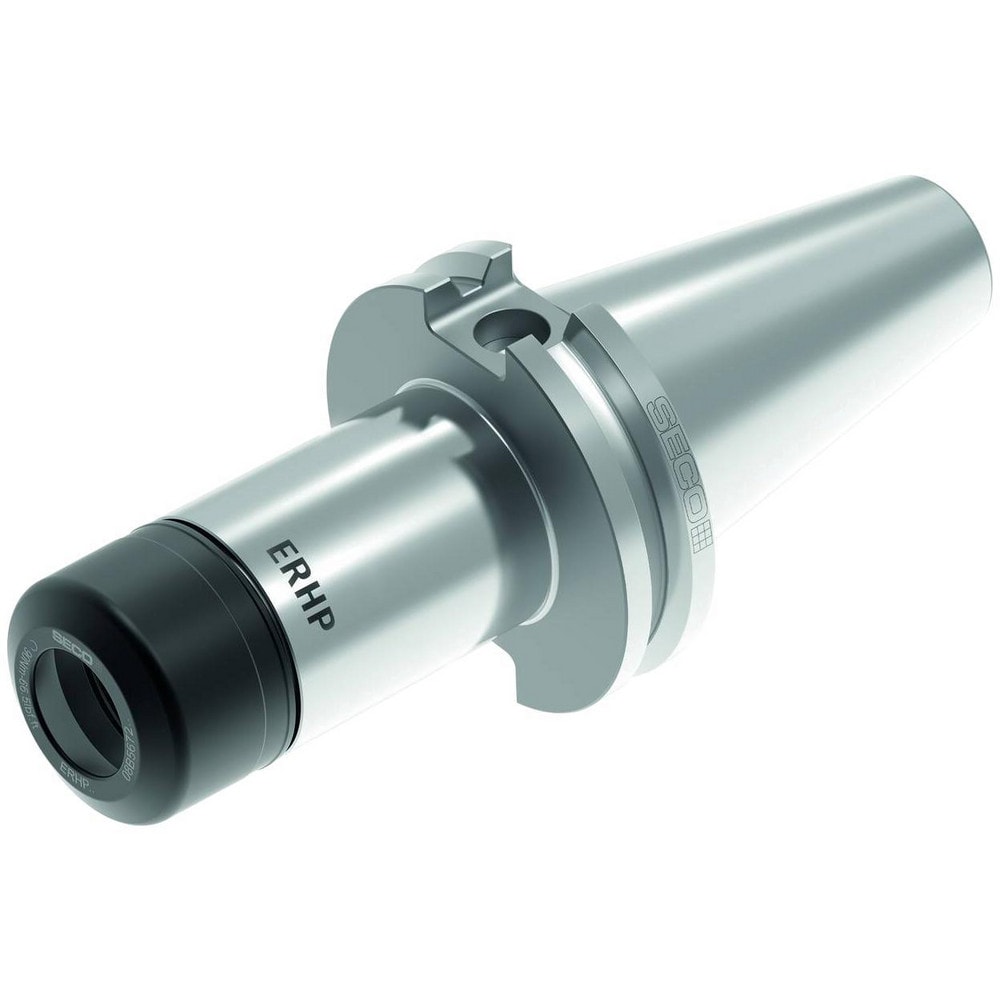

Collet Chuck: HP Collet, CAT Taper Shank, Dual Contact
Item #: 44201861
Brand: Seco
Model #: 10190243
Product Specifications
| Collet System | HP |
| Collet Series | HP25 |
| Shank Type | CAT Taper |
| Taper Size | CAT40 |
| Modular Connection Size | CAT40 |
| Projection (mm) | 101.600 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 1/8 |
| Minimum Collet Capacity (Decimal Inch) | 0.1250 |
| Maximum Collet Capacity (Inch) | 1/2 |
| Maximum Collet Capacity (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 170 |
| Actuator Type | Wrench |
| Dual Contact | Yes |
| Nose Diameter (Mm) ( - 2 Decimals) | 40.00 |
| Shank Diameter (Inch) | 1-3/4 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Shank Length (Inch) | 2-11/16 |
| Shank Length (Decimal Inch) | 2.6875 |
| Material | Steel |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (mm) | 40.00 |
| Nose Type | Extended Nose |
| Head Length (Inch) | 4 |
| Additional Information | Specifically Designed For High-Speed Machining, Seco?s 5672 High-Precision Collet Chuck Features 3 Microns Runout At Three Times Tools Shank Diameter (3xD) When Using Our Specific ER HP Collets. |
| Locknut Diameter (Decimal Inch) | 1.5748 |
| Manufacturer's Part Number | 10190243 |
| UNSPSC Code | 27112808 |
| Head Length (Decimal Inch) | 4.0000 |
| Balanced To Rpm | 25000 |
| For Use With | Rotating Tools |
