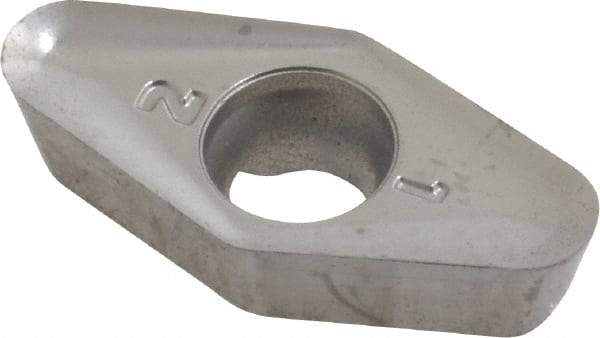

Seco - VPGX220631 E10 Grade H25 Carbide Milling Insert - Uncoated, 1/4" Thick, 0.551" Inscribed Circle, 0.122" Corner Radius
Item #: 09752056
Brand: Seco
Model #: 35401
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VPGX |
| Insert Size | 220631 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | H25 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.5510 |
| Length (Decimal Inch) | 0.5510 |
| Inscribed Circle (Decimal Inch) | 0.5510 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.1220 |
| Relief Angle | 11.000 |
| Rake Angle | 25 |
| Included Angle | 35 |
| Shape | Diamond |
| Insert Hand | Neutral |
| Chipbreaker | E10 |
| ISO Number | VPGX220631EN-E10 |
