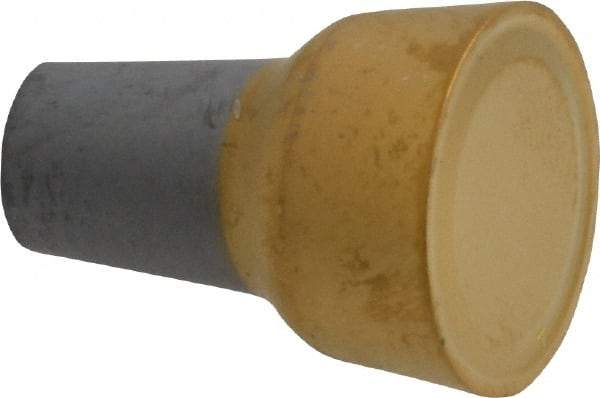

Kennametal - RCMK46, KC730 Grade Carbide Profiling Insert - TiN Finish, 7° Relief Angle, Round, 16.61mm Thick, 1/2" Inscribed Circle
Item #: 09652462
Brand: Kennametal
Model #: 1163524
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | RCMK |
| Insert Size | 46 |
| Material Grade | C2/C3/C4 |
| Manufacturer's Grade | KC730 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 16.61 |
| Thickness (Decimal Inch) | 0.6540 |
| Insert Height (mm) | 16.61 |
| Insert Height (Decimal Inch) | 0.6539 |
| Relief Angle | 7 |
| Coating | TiN |
| Length (Decimal Inch) | 0.6539 |
| Length (mm) | 16.61 |
| Rake | Positive |
| Coating Process | PVD |
| Secondary Workpiece Material | S; M |
| Primary Workpiece Material | N |
| Series | K-Lock |
| Insert Holding Method | Clamp |
| Shape | Round |
