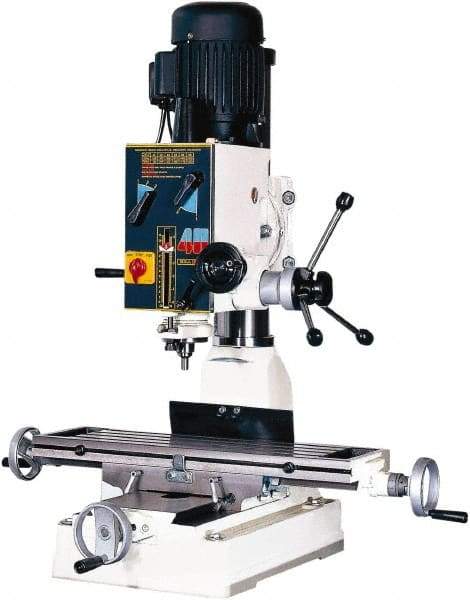

Rong Fu - 1 Phase, 20" Swing, Geared Head Mill Drill Machine - 28-3/4" Table Length x 8-1/4" Table Width, 18-1/8" Longitudinal Travel, 9" Cross Travel, 6 Spindle Speeds, 1 hp, 220 Volts
Item #: 09542911
Brand: Rong Fu
Model #: RF-40/1 M
Exact Tooling IR#: 04
Features and Benefits
Geared head drive systems are similar to step pulleys, but are driven by a geared transmission. They offer rapid speed changes by turning a hand dial. They feature three to four fixed speeds
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors. Machine phase would commonly match the type of electrical current used in the facility.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Geared Head |
| Swing Distance (Inch) | 20 |
| Phase | 1 |
| Table Length (Inch) | 28-3/4 |
| Table Width (Inch) | 8-1/4 |
| Longitudinal Travel (Inch) | 18-1/8 |
| Cross Travel (Inch) | 9 |
| Number of Spindle Speeds | 6 |
| Minimum Spindle Speed (RPM) | 50.00 |
| Maximum Spindle Speed (RPM) | 1550.00 |
| Spindle Travel Length (Decimal Inch) | 5.1181 |
| Spindle Taper Size | 3MT/R8 |
| Drilling Capacity in Steel (mm) | 38.10 |
| Drilling Capacity in Steel (Inch) | 1-1/2 |
| Drilling Capacity in Cast Iron (mm) | 38.10 |
| Drilling Capacity in Cast Iron (Inch) | 1-1/2 |
| Tapping Capacity in Steel (mm) | 19.05 |
| Tapping Capacity in Steel (Inch) | 3/4 |
| Quill Diameter (Decimal Inch) | 4.5276 |
| Spindle Power Feed Rate Per Minute (mm/rev) | 0.12; 0.18; 0.25 |
| Maximum Spindle To Column Distance (Decimal Inch) | 10.2362 |
| Number of T-Slots | 4 |
| T-Slot Size (mm) | 16 x 26 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Horsepower (HP) | 1.00 |
| Voltage | 220 |
